ST6EDCS



MODEL SPEC.

Pressure

Port

Model

Volumetric

Displacement Vp

( cm3/rev )

Max.

Pressure

( kgf/cm2 )

Max.

Speed

( r.p.m. )

Min.

Speed

( r.p.m. )

Weight
( kg )

P1

042

132.3

240

2200



108.5

045

142.4

050

158.5

052

164.8

057

180.7

062

196.7

066

213.3

072

227.1

085

269.8

90

2000

P2

014

47.6

240

2200

017

58.2

020

66.0

024

79.5

028

89.7

031

98.3

035

111.0

038

120.3

042

136.0

045

145.7

050

158.0

210

061

190.5

120

P3

003

10.8

275

2200

005

17.2

006

21.3

008

26.4

010

34.1

012

37.1

014

46.0

017

58.3

020

63.8

022

70.3

025

79.3

028

88.8

210

031

100.0



Pressure

Port

Model

Flow qve

[l/min]=1500r.p.m.

Input Power P

[kw]=1500r.p.m.

p=

0bar

p=

140bar

p=

240bar

p=

7bar

p=

140bar

p=

240bar

P1

042

198.5

188.5

181.3

5.2

49.4

82.6

045

213.6

203.6

196.5

5.4

52.9

88.7

050

237.7

227.7

220.6

5.7

58.5

98.3

052

247.2

237.2

230.1

5.8

60.8

102.1

057

271.1

261.1

254.0

6.1

66.4

106.9

062

295.0

285.0

277.9

6.4

71.9

121.3

066

319.9

309.9

302.8

6.7

77.7

131.2

072

340.6

330.6

323.5

6.9

82.6

139.5

085

404.7

397.7

-

7.3

65.3

-

P2

014

71.4

62.1

55.9

2.3

18.5

30.6

017

87.3

78.0

71.8

2.5

22.2

37.0

020

99.0

89.7

83.5

2.8

24.9

41.7

024

119.3

110.0

103.8

3.0

29.6

49.8

028

134.5

125.2

119.0

3.2

33.2

55.9

031

147.5

138.1

131.9

3.3

36.2

61.0

035

166.5

157.2

151.0

3.5

40.7

68.7

038

180.4

171.1

164.9

3.7

43.9

74.3

042

204.0

194.7

188.5

4.0

49.4

83.7

045

218.5

209.2

203.0

4.1

52.8

89.5

050

237.0

227.7

224.0

4.4

57.0

85.0

061

285.7

278.0

-

4.6

60.6

-

P3

003

16.2

11.2

7.7

1.3

5.3

8.4

005

25.8

20.8

17.3

1.4

7.5

12.2

006

31.9

26.9

23.4

1.5

8.9

14.7

008

39.6

34.6

31.1

1.6

10.7

17.7

010

51.1

46.1

42.6

1.7

13.4

22.3

012

55.6

50.6

47.1

1.7

14.4

24.1

014

69.0

64.0

60.5

1.9

17.6

29.5

017

87.4

82.4

78.9

2.1

21.9

36.9

020

95.7

90.7

87.2

2.2

23.8

40.2

022

105.4

100.4

96.9

2.3

26.1

44.1

025

118.9

113.9

110.4

2.5

29.2

49.5

028

133.2

128.2

125.8

2.8

32.7

48.5

031

150.0

145.0

142.6

2.8

36.5

54.2

Typical : 24cSt

* Input power P (kw) for one cartridge only.









ORDER CODES

ST6EDCS - 066 - 038 - 008 - 1 R 00 - C 1 - P - 0

      a        -b(P1)-b(P2)-b(P3)- c  d   e  - f  g - h -  i



a.     Model Name : ST6EDCS

b.     Cam Ring Volumetric Displacement:

      P1 = 042, 045, 050, 052, 057, 062, 066, 072, 085

      P2 = 014, 017, 020, 024, 028, 031, 035, 038, 042,045, 050, 061

      P3 = 003, 005, 006, 008, 010, 012, 014, 017, 020, 022, 025, 028, 031

c.      Shaft Type :

      1:keyed G45N-ISO 3019-2

      2:keyed SAE D & E

      3:spline SAE D & E

d.     Direction of Rotation ( Viewed from Shaft Side ) :

      R:clockwise direction

      L:counter clockwise direction

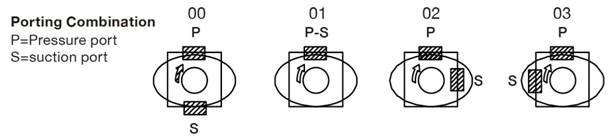

e.     Porting Combination :

      00:standard

f.       Design Number : C

g.     Seal Class :

      1:S1 (for mineral oil)

      4:S4 (for fire resistant fluids)

      5:S5 (for mineral oil and fire resistant fluids)

h.     Mounting (Pump) :

      P:pedestal mounting

      F:face mounting

i.        Mounting w/connection Variables :

      0:P3=1" SAE

      1:P3=3/4" SAE









SYMBOLS









CURVES









DIMENSION (UNIT : mm)
