MODEL SPEC.
|
|
|
Model
|
DPS
|
|
Pressure
Ranges (PSI)
|
5, 15, 50, 75,
100, 200, 300, 500,
750, 1000, 1500, 2000,
3000, 5000
|
|
Accuracy
|
±0.25% full scale
|
|
Output
Type
|
4 digits LCD,
4 ~ 20mA current output, and a NPN limit switch
|
|
Keypad
Operated Functions
|
peak hold
zero adjustment
high and low pressure set points
|
|
Supply
Voltage
|
DC12V
|
|
Operational
Temperature
|
-10 ~ 60°C
|
|
Water
Resistant Level
|
NEMA 4X (IP65)
|
|
Options
of Pressure Unit
|
PSI, Bar, Mpa
|
|
Media
Isolation
|
316L SS diaphragm
|
|
Thread
Connection
|
304L SS Port 22mm 1/4 – 18 NPT
or 22mm 1/8 - 27 NPT
|
|
Chemical
Compatibilities
|
any gas or liquid with
chemically compatible to 304L SS and 316L SS
|
|
Typical
Applications
|
process control, refrigeration, fuel cells,
pumps, hydraulics, pneumatics, compressors,
waste water, agriculture
|
|
Weight
(kg)
|
0.38
|
|
|
|
ORDER CODES
|
|
|
DPS - 500 - A
a - b - c
a. Model
Name : DPS
b. Pressure
Range : 5, 15, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000,
5000 (PSI)
c. Thread
Connection : A:22mm 1/4 - 18 NPT, B:22mm 1/8 - 27 NPT
|
|
|
SYMBOLS
|
|
|
|
|
|

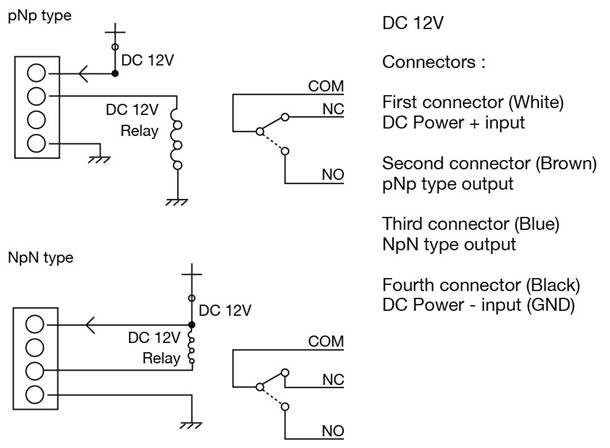

CABLE CONNECTING INDICATION
|
|
|
|
|
|

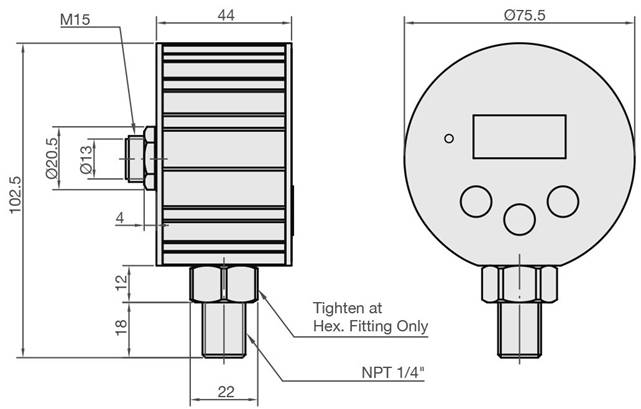

DIMENSION (UNIT : mm)
|
|
|
|
|
|
|
