MODEL SPEC.
|
|
|
Model
|
Free
Flow
( l/min )
|
Max.
Operational Pressure
( kgf/cm2 )
|
Max.
Operational Flow
( l/min )
|
Weight
( kg )
|
|
FKC-03
|
50
|
150
|
1, 2, 4, 8
|
2
|
|
* The most common max. operational flow is 4 l/min.
|
|
ORDER CODES
|
|
|
FKC - 03 - 04
a
- b - c
a. Model
Name : FKC
b. Thread
Connection : 03:PT 3/8"
c. Max.
Operational Flow : 01:1l/min, 02:2l/min, 04:4l/min, 08:8l/min
|
|
|
SYMBOLS
|
|
|
|
|
|

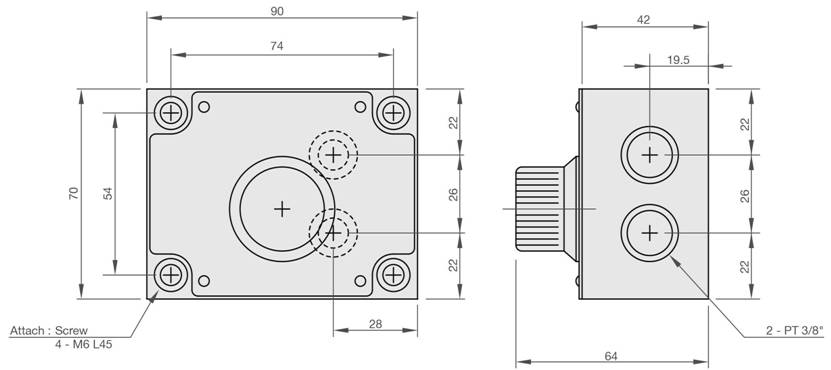

DIMENSION (UNIT : mm)
|
|
|
|
|
