MODEL SPEC.
|
|
|
Model
|
Max.
Pressure
(
kgf/cm2 )
|
Delivery
at
3.5 kgf/cm2
1800
r.p.m.
(
l/min )
|
Speed
(
r.p.m. )
|
Ports
Size
(
PT )
|
Weight
(
kg )
|
|
Min.
|
Max.
|
Outlet
|
Inlet
|
DR
|
Foot
Type
|
Flange
Type
|
|
VHPD-2020
|
140
|
20+20
|
900
|
1800
|
1/2”
|
3/4”
|
3/8”
|
30
|
23
|
|
VHPD-2626
|
140
|
26+26
|
|
VHPD-3030
|
140
|
30+30
|
|
VHPD-4040
|
105
|
40+40
|
|
VHPD-5430
|
105
|
54+30
|
800
|
1800
|
3/4”
&
1/2"
|
1”
&
3/4"
|
3/8”
|
49
|
39
|
|
VHPD-5440
|
105
|
54+40
|
|
VHPD-7030
|
105
|
70+30
|
|
VHPD-7040
|
105
|
70+40
|
|
VHPD-8630
|
105
|
86+30
|
|
VHPD-8640
|
105
|
86+40
|
|
|
|
ORDER CODES
|
|
|
VHPD - F - 3030
- A2 - T9
a - b - c -
d - e
a. Model
Name : VHPD
b. Mounting :
F:flange type
L:foot type
c. Delivery
at 1800 r.p.m. : 2020, 2626, 3030, 4040, 5430, 5440, 7030, 7040,
8630, 8640
d. Pressure
Adj. Range :
A1:8~35 kgf/cm2
A2:35~70 kgf/cm2
A3:70~105 kgf/cm2
A4:105~140 kgf/cm2
e. Design Number :
T9:spline shaft
none:straight shaft
|
|
|
SYMBOLS
|
|
|
|
|
|

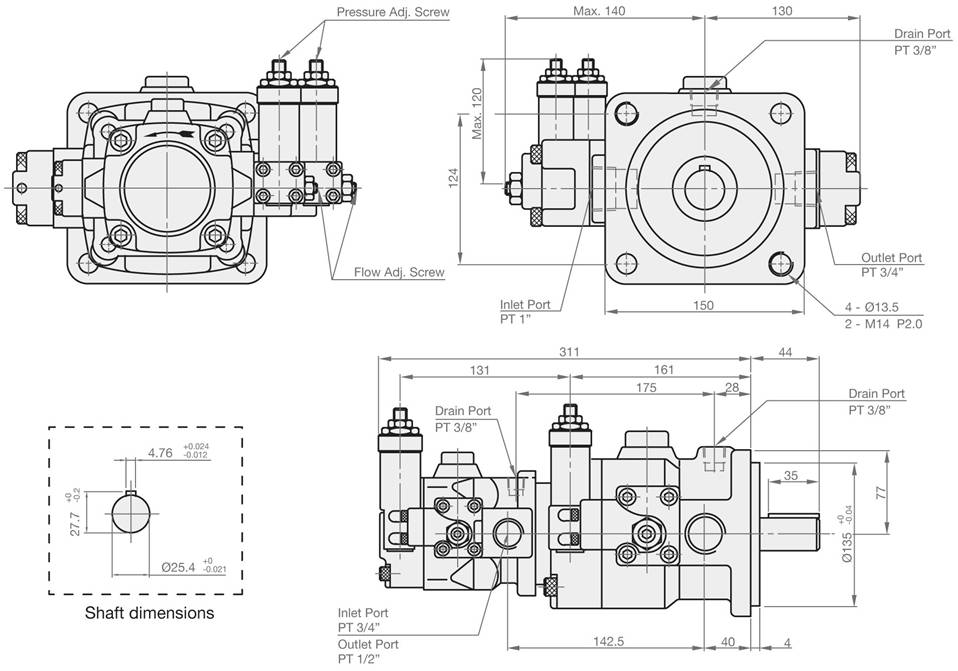

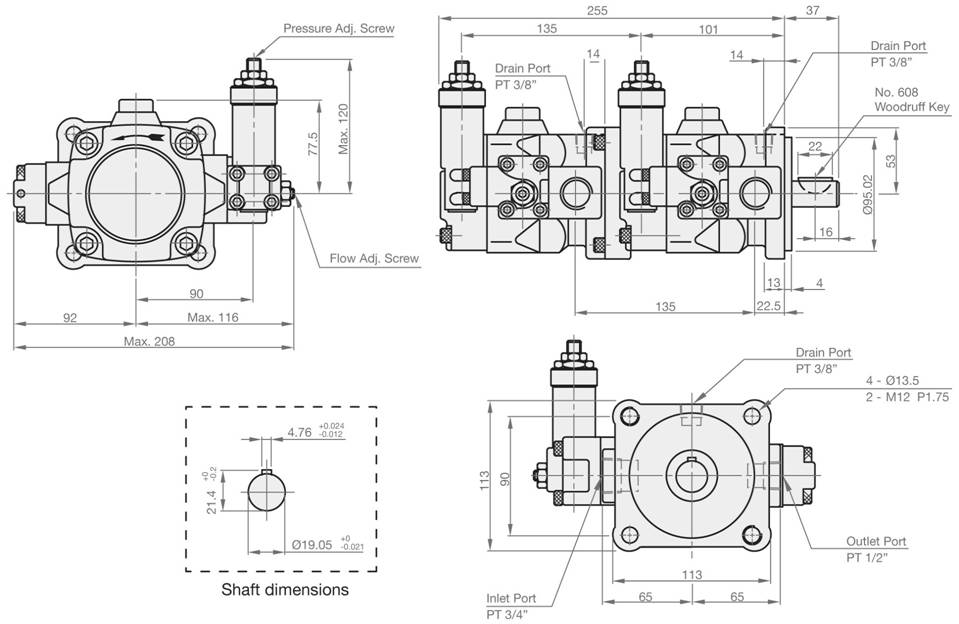

DIMENSION (UNIT : mm)
|
|
|
VHPD-2020, 2626, 3030, 4040
VHPD-5430, 5440, 7030, 7040, 8630,
8640
|
|
|
|
