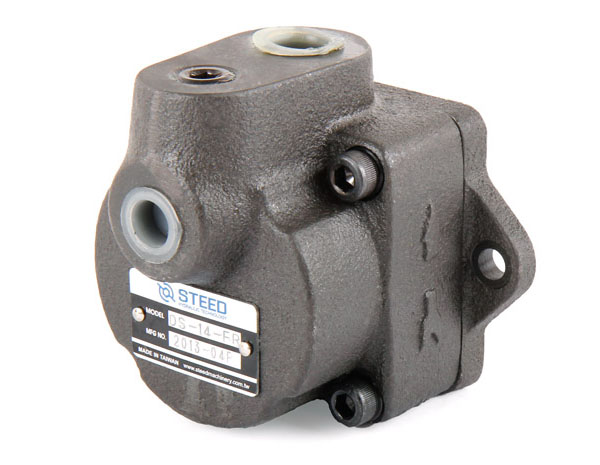

DS - 12 - L - R
a
- b - c - d
a. Model
Name : DS
b. Interior
Structure and Dimension : 11, 12, 13, 14
c. Mounting :
F:flange type
L:foot type
d. Direction of
Revolving (Side View of Self Aligning Bearing) :
R:clockwise direction
L:counter clockwise direction
|
