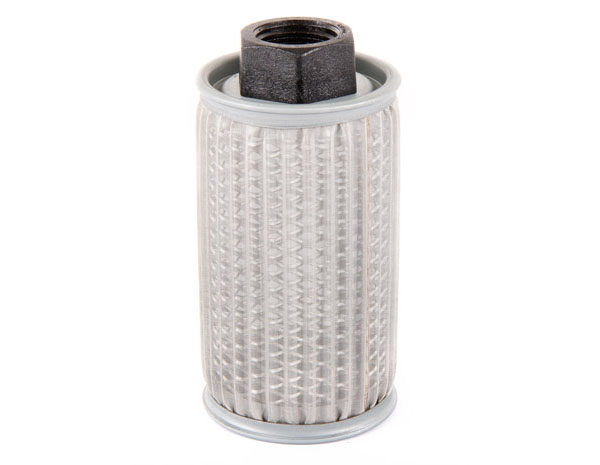

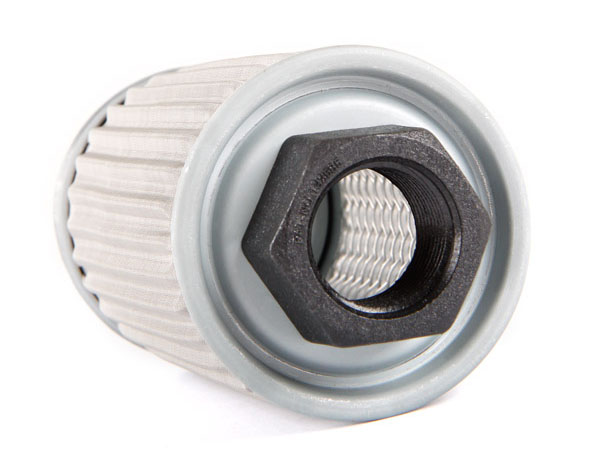

MF Type

MODEL SPEC.

Model

Thread
Connection
( PT )

Flow
( l/min )

Filtration

( mesh )

Weight

( kg )

MF-02

1/4”

20

100

0.09

MF-03

3/8”

25

0.09

MF-04

1/2”

30

0.09

MF-06

3/4”

55

0.14

MF-08

1”

90

0.16

MF-10

1 1/4”

130

0.18

MF-12

1 1/2”

200

0.25

MF-16

2”

280

0.37

MF-20S

2 1/2”

700

0.97

MF-20

2 1/2”

700

1.14

MF-24S

3”

800

1.00

MF-24

3”

800

1.20

MF-32

4”

1000

1.58

SYMBOLS

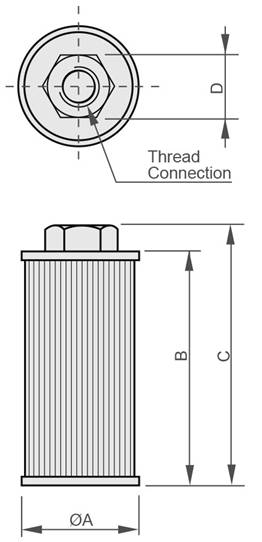

DIMENSION (UNIT : mm)

Model

A

B

C

D

MF-02

54

86

92

21

MF-03

54

86

92

21

MF-04

54

86

92

27

MF-06

66

121

137

34

MF-08

66

147

163

42

MF-10

66

166

184

54

MF-12

85

177

194

61

MF-16

105

198

214

74

MF-20S

158

250

270

109

MF-20

158

350

370

109

MF-24S

158

250

270

109

MF-24

158

350

370

109

MF-32

208

356

379

142
