MODEL SPEC.
Model
React to Pressure Differential ( bar )
Weight
( kg )
S1-05-10
10
0.14
S1-05-35
3.5
S1-18-10
S1-18-35
ORDER CODES
S1 - 05 - 10
a - b - c
a. Model Name : S1:visual type
b. Mounting Type :
05:PF 1/2”
18:M18 P1.5
c. React to Pressure Differential :
10:10bar
35:3.5bar
SYMBOLS
DIMENSION (UNIT : mm)

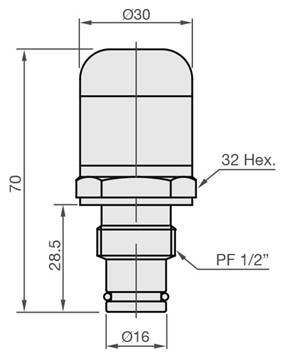

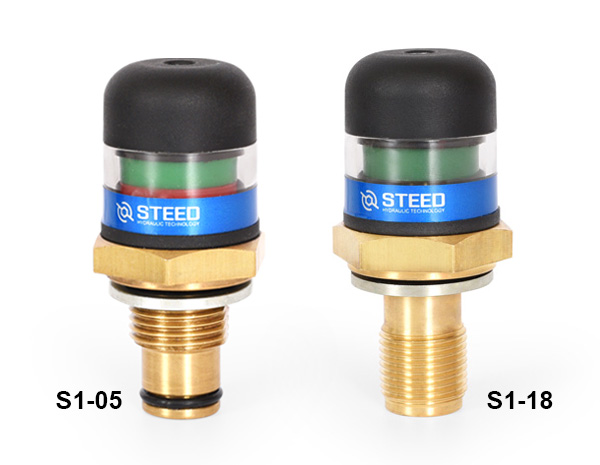

S1-05

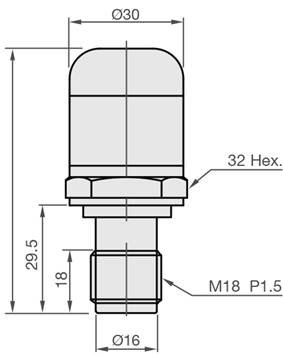

S1-18
