HP-08 - 1 - A6 - D2 - N
a
- b - c - d - e
a.
Model Name : HP-08

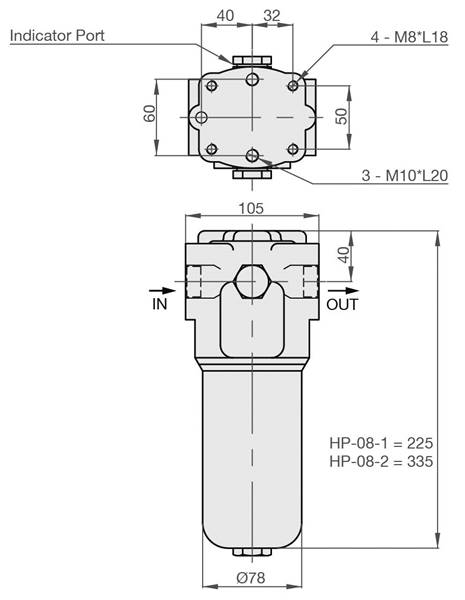

b. Housing Length & Thread Connection:
1: 225mm. BSP, NPT, SAE 1"
2: 335mm. BSP, NPT, SAE 1"

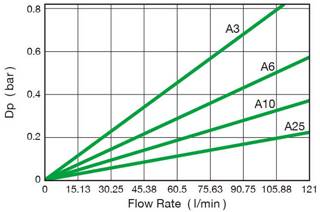

c. Type of Filter Element :
A3:fiber 3um, B≧1000
A6:fiber 6um, B≧1000
A10:fiber 10um, B≧1000
A25:fiber 25um, B≧1000
T40:wire mesh 40um
d. Type
of Pressure Indicator :
N:with plug
D1:visual
D2:visual-electrical
e. Seals
:
N:NBR
V:viton
|
