SV

MODEL SPEC.

Model

Thread Connection
( PT )

Max. Operating Pressure
( kgf/cm² )

Flow
( l/min )

Weight
( kg )

SV-02-180°

1/4”

350

2

0.29

SV-03-180°

3/8”

21

0.27

SV-02-90°

1/4”

2

0.32

SV-03-90°

3/8”

21

0.30

SV-04-180°

1/2”

30

0.72

SV-06-180°

1/4”

100

1.28

SV-08-180°

1”

300

2.22

SYMBOLS

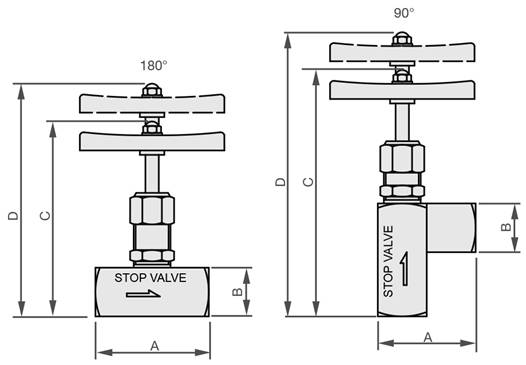

DIMENSION (UNIT : mm)

Model

A

B

C

D

SV-02-180°

51

22

87

100

SV-03-180°

51

22

87

100

SV-02-90°

37

22

99

116

SV-03-90°

37

22

99

116

SV-04-180°

65

32

110

118

SV-06-180°

84

38

149

167

SV-08-180°

102

51

149

167
