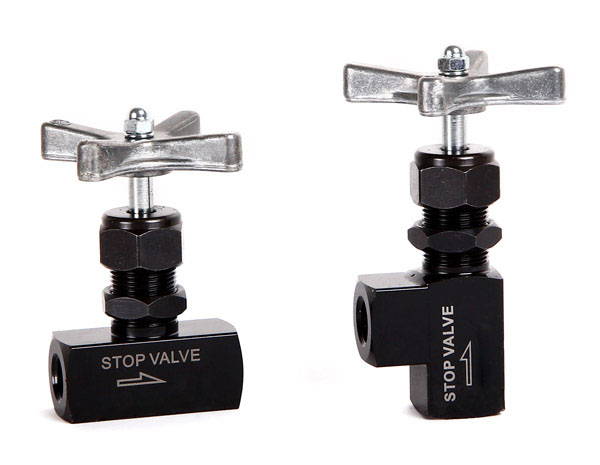

ST

MODEL SPEC.

Model

Thread Connection
( PT )

Max. Operating Pressure
( kgf/cm² )

Flow
( l/min )

Weight
( kg )

ST-02-180°

1/4”

210

2

0.32

ST-03-180°

3/8”

21

0.30

ST-02-90°

1/4”

2

0.32

ST-03-90°

3/8”

21

0.30

SYMBOLS

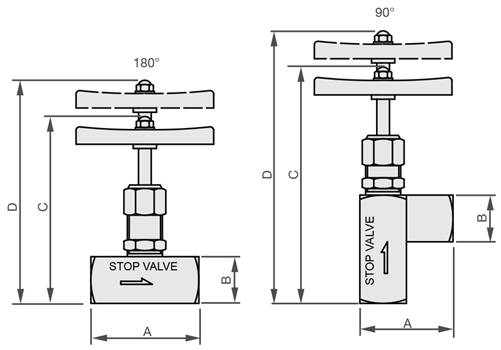

DIMENSION (UNIT : mm)

Model

A

B

C

D

ST-02-180°

51

22

88

94

ST-03-180°

51

22

88

94

ST-02-90°

37

22

95

105

ST-03-90°

37

22

95

105
