MODEL SPEC.
Model
Operating Pressure ( kgf/cm2 )
Flow
( l/min )
Weight ( kg )
TLC-02
250
12
0.24
TLC-03
20
0.30
TLC-04
30
0.49
TLC-06
48
0.60
Max. Operating Pressure : 250 kgf/cm2
Max. Operating Temperature : 80°C
SYMBOLS

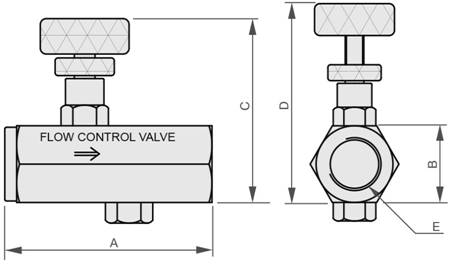

DIMENSION (UNIT : mm)
A
B
C
D
E
62
23
55
60
PT 1/4”
70
26
66
PT 3/8”
81
32
67
75
PT 1/2”
92
41
80
88
PT 3/4”
