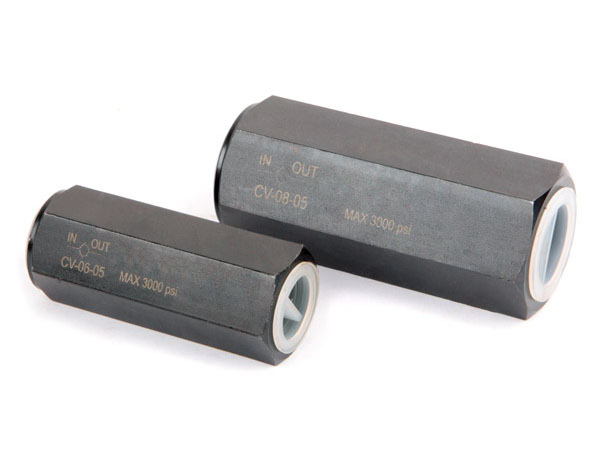

CV, CIT

MODEL SPEC.

Model

Thread Connection

Operating Pressure

Cracking Pressure
( kgf/cm² )

Flow
( l/min )

Weight
( kg )

CV-03

PT 3/8"

210 kgf/cm²( 3000 PSI )

05 : 0.5

50 : 5.0

40

0.18

CV-04

PT 1/2"

60

0.32

CV-06

PT 3/4"

100

0.48

CV-08

PT 1"

150

1.10

CV-10

PT 1 1/4"

200

1.88

CV-12

PT 1 1/2"

270

2.18

CV-16

PT 2"

400

3.90

CIT-03

PT 3/8" NPT. SAE

350 kgf/cm²( 5000 PSI )

05 : 0.5

50 : 5.0

40

0.32

CIT-04

PT 1/2" NPT.SAE

60

0.56

CIT-06

PT 3/4" NPT.SAE

100

0.81

CIT-08

PT 1" NPT.SAE

150

1.84

CIT-10

PT 1 1/4" NPT.SAE

200

2.40

CIT-12

PT 1 1/2" NPT.SAE

270

2.70

CIT-16

PT 2" NPT.SAE

400

4.80

SYMBOLS

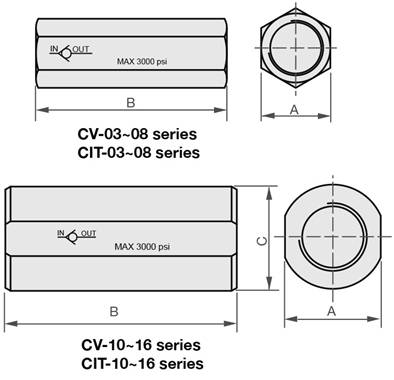

DIMENSION (UNIT : mm)

Model	A	B	C		Model	A	B	C
CV-03	23	74	-		CIT-03	27	76	-
CV-04	29	80	-		CIT-04	35	82	-
CV-06	35	90	-		CIT-06	41	96	-
CV-08	46	113	-		CIT-08	55	114	-
CV-10	55	133	60		CIT-10	60	133	65
CV-12	60	139	65		CIT-12	65	140	70
CV-16	75	154	80		CIT-16	85	154	88.9
