MODEL SPEC.
Model
Thread Connection ( PT )
Operating Pressure
Cracking Pressure ( kgf/cm2 )
Flow ( l/min )
Weight ( kg )
CV-03B
3/8”
210 kgf/cm2 ( 3000 PSI )
05 : 0.5
50 : 5.0
40
0.36
CV-04B
1/2”
60
0.62
CV-06B
3/4”
100
1.00
CV-08B
1”
150
2.20
SYMBOLS

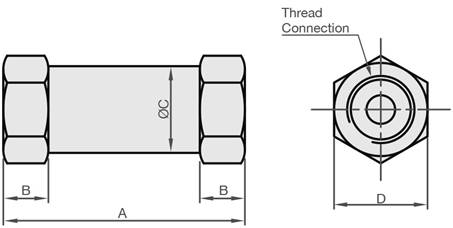

DIMENSION (UNIT : mm)
A
B
C
D
75
14
30
32
104
25
34
35
120
27
41
139
56
57
