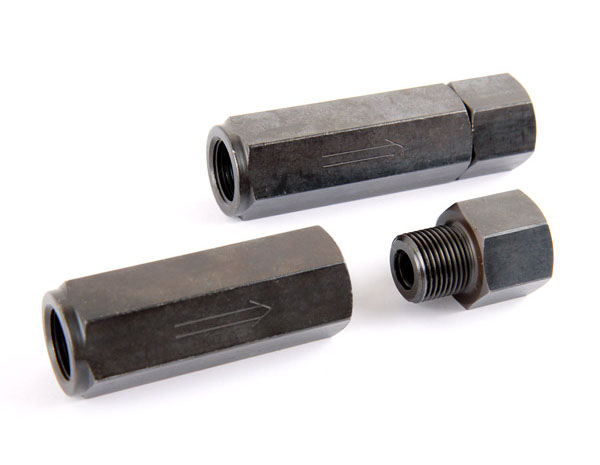

MODEL SPEC.
Model
Thread Connection ( PT )
Operating Pressure
Cracking Pressure ( kgf/cm2 )
Flow ( l/min )
Weight ( kg )
CF-03
3/8”
210 kgf/cm2 ( 3000 PSI )
05 : 0.5
50 : 5.0
40
0.22
CF-04
1/2”
60
0.34
CF-06
3/4”
100
0.58
CF-08
1”
150
1.26
* If you prefer the check valves without the crescent rings, please choose this type.
SYMBOLS

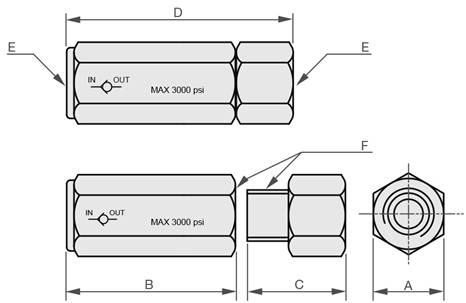

DIMENSION (UNIT : mm)
A
B
C
D
E
F
23
64
33
83.5
PT 3/8"
BSPP 3/8"
29
69.5
36
90.5
PT 1/2"
BSPP 1/2"
35
80
PT 3/4"
BSPP 3/4"
46
48.5
129
PT 1"
BSPP 1"
