Model
|

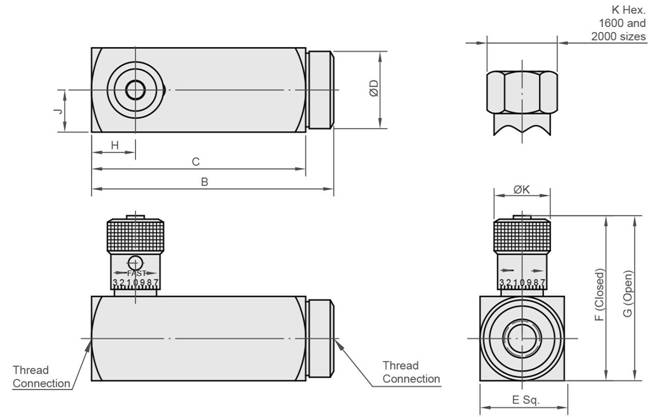

Thread Connection
( PT )
|
Max. Flow
( l/min )
|
Min. Flow
( l/min )
|

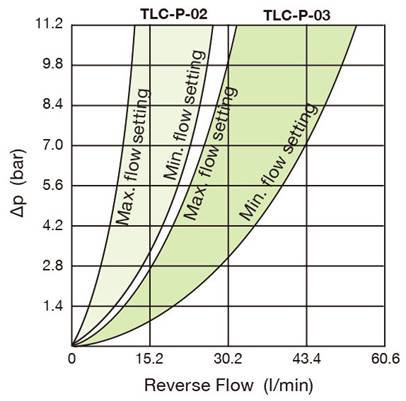

Reverse Flow Max.Thru Check
( l/min )
|
Operating Pressure
( kgf/cm2 )
|
Weight
( kg )
|
|
TLC-P-02
|
1/4”
|
11
|
1
|
19
|
3.06
|
0.8
|
|
TLC-P-03
|
3/8”
|
23
|
2
|
39
|
3.06
|
1.0
|
Max. operating pressure : 211.03kgf/cm2
Min. pressure to compensate : 7.03kgf/cm2
( 6.9Bar )

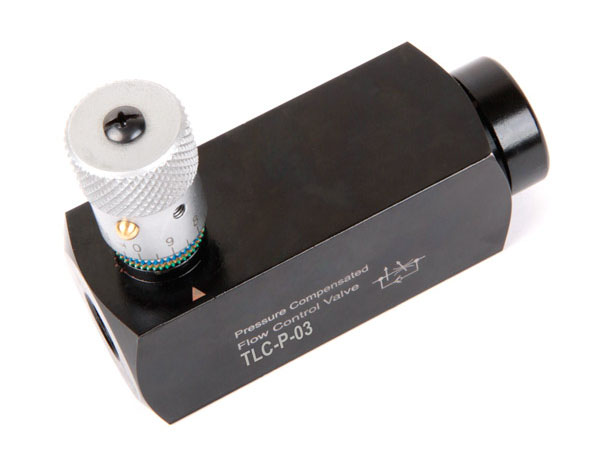

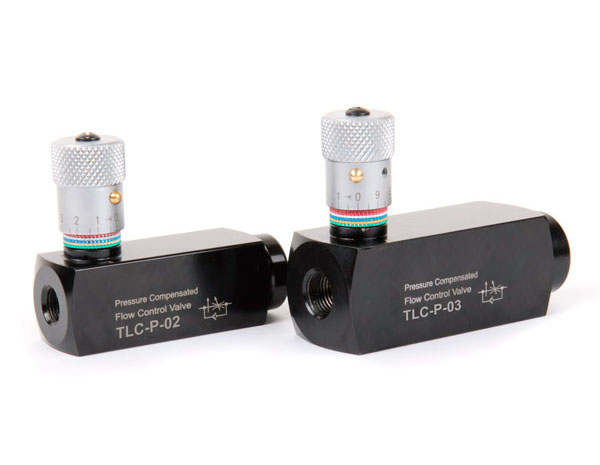

* TLC-P : with pressure compensated
|
