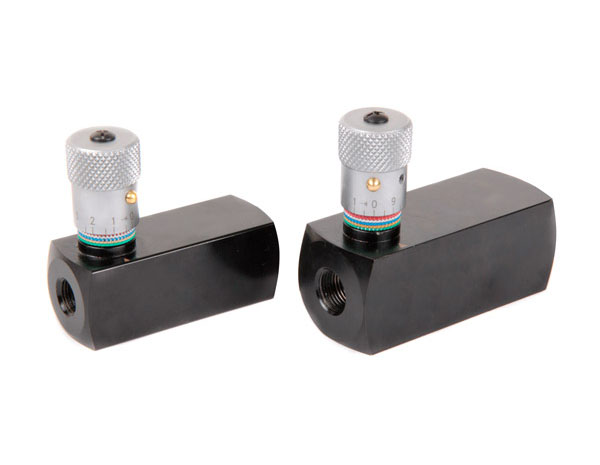

TLC-M

MODEL SPEC.

Model

Thread Connection

( PT )

Max. Operating Pressure
( kgf/cm² )

Weight
( kg )

TLC-M-03

3/8”

211

0.36

TLC-M-04

1/2”

211

0.63

SYMBOLS

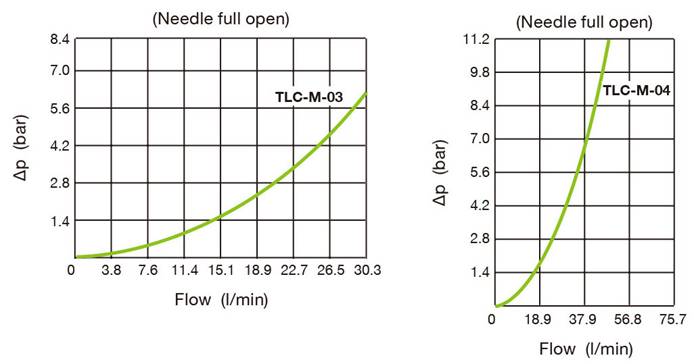

PPERFORMANCE CURVES

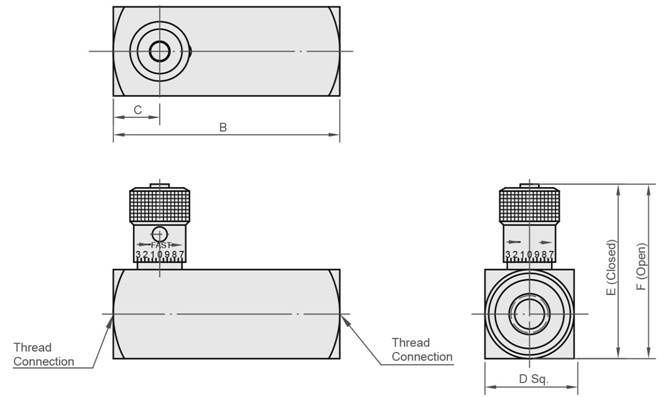

DIMENSION (UNIT : mm)

Model

B

C

D

E

F

TLC-M-03

70.1

25.4

25.4

62.3

69.3

TLC-M-04

87.63

29.78

31.7

67.3

72.3
