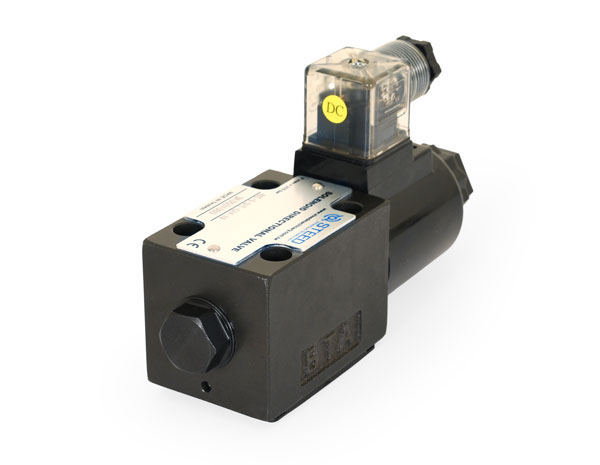

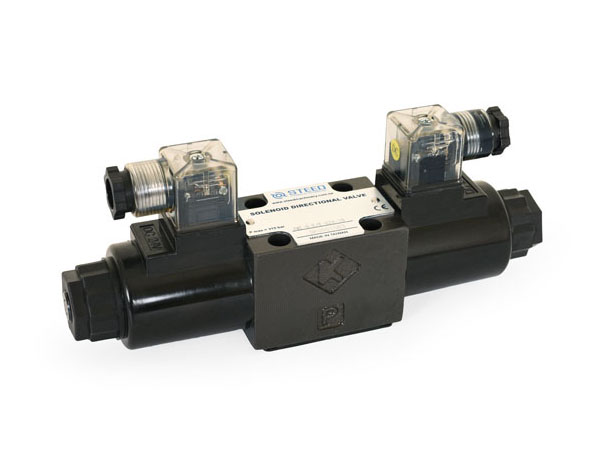

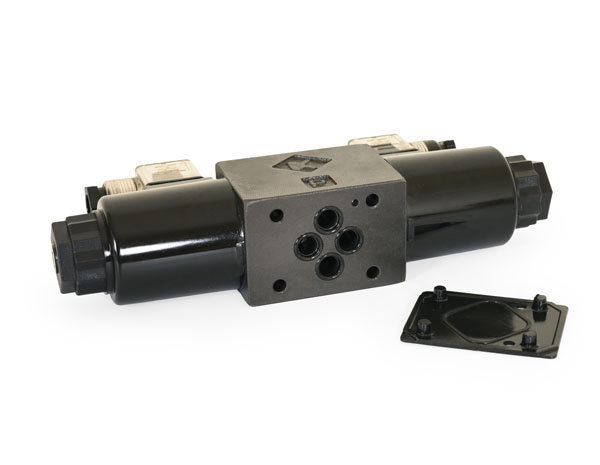

MODEL SPEC.
|
|
|
Orifice
|
Max.
Flow
(l/min)
|
Max.
Pressure
(kgf/cm2)
|
Tolerant
Back Pressure
(kgf/cm2)
|
Switch
Frequency
(times/min)
|
Weight
(
kg )
|
|
|
AC
|
DC
|
|
|
1
Solenoid
|
2
Solenoids
|
1
Solenoid
|
2
Solenoids
|
|
|
NG6 (Cetop3)
|
AC
60
DC
80
|
315
|
160
|
AC 120
DC 250
|
1.6
|
2.1
|
1.7
|
2.1
|
|
|
|
|
|
|
|
|
|
|
|
|
．Operating oil
temperature: 5~80°C (41~176°F)
．Filtration mesh:
less than 25µm

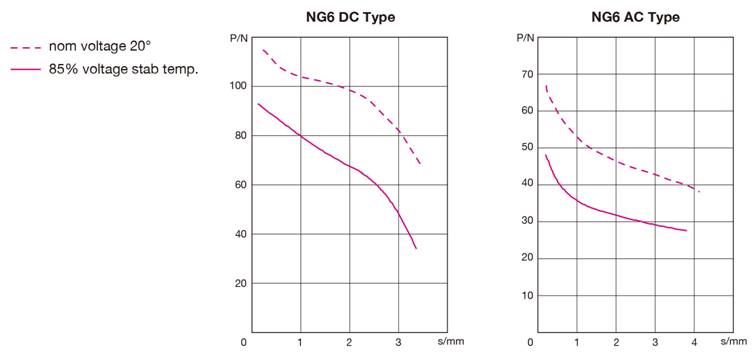

Specifications & Properties of Solenoids
|
Power
Source
|
AC
|
DC
|
|
Voltage
|
AC110V
|
AC220V
|
DC12V
|
DC24V
|
|
Hertz
|
50
|
60
|
50
|
60
|
-
|
-
|
|
Rated
Force (N)
|
30
|
50
|
|
Rated
Stroke (mm)
|
3
|
3
|
|
Total
Stroke (mm)
|
6.5
|
≧6.5
|
|
Duty
Cycle (%)
|
100
|
100
|
|
Insulation
Class
|
H
|
B
|
|
Power
Consumption
|
≦28
|
32
|
|
Inrush
(VA)
|
≦66
|
32
|
|
Voltage
Tolerance
|
100~120
|
210~230
|
10.8~13.2
|
21.6~26.4
|
|
Holding
Power (VA)
|
50
|
-
|
|
Switch-On
Power (VA)
|
220
|
-
|
|
|
|
|
|
|
|
|
|
ORDER CODES
|
|
|
4 WE - 6 - D O E -
W220/50 - 10
a b - c - d e f -
g - h
a. Number
of Main ports :
3: 3 main ports
4: 4 main ports
b. Model
Name : WE
c. Size
:
6: NG6 (Cetop3) 1/4” (02)
d. Type of Valves
: please refer to the symbol list (type of valves).
e. Spring Return :
/: with spring return
O: without spring return
OF: without spring return with detent
f.
High-power
solenoid :
E: wet-pin, with removable coil
g.
Power
Source :
G12: DC 12V
G24: DC 24V
W110/50: AC 110V, 50Hz
W110/60: AC 110V, 60Hz
W220/50: AC 220V, 50Hz
W220/60: AC 220V, 60Hz
h.
Solenoid Appearance :
10: plug-in connation
|
|
|

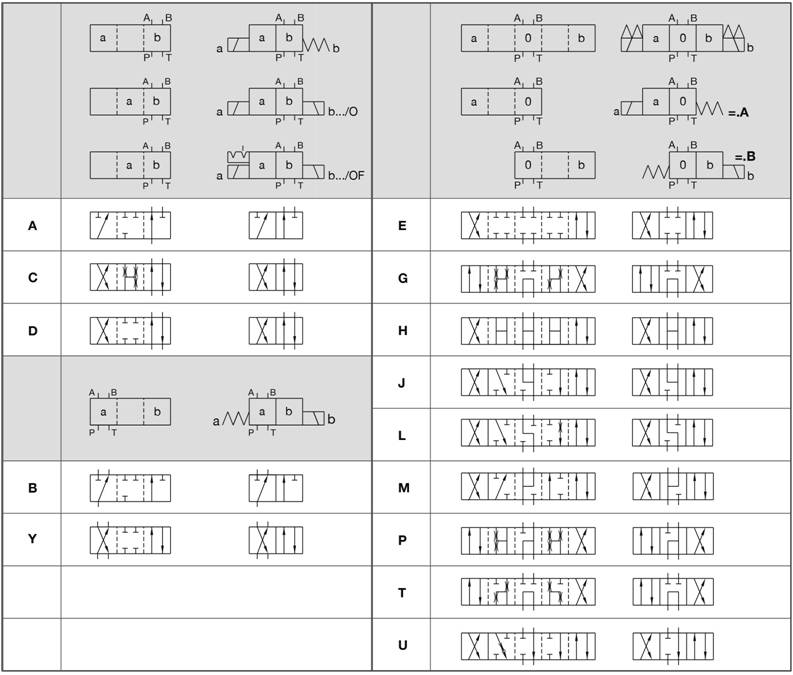

SYMBOL LIST (TYPE OF VALVES)
|
|
|
|
|
|

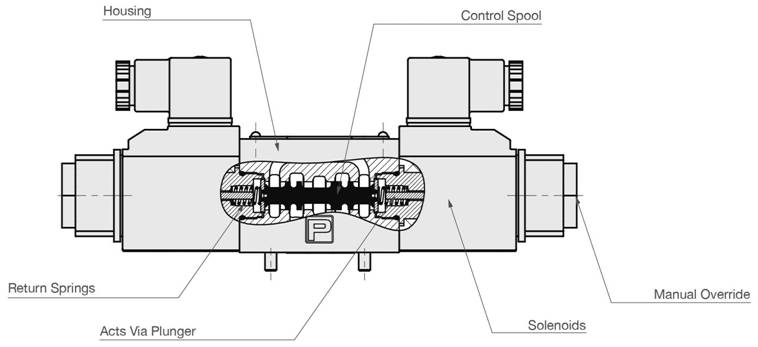

SECTION
|
|
|
|
|
|

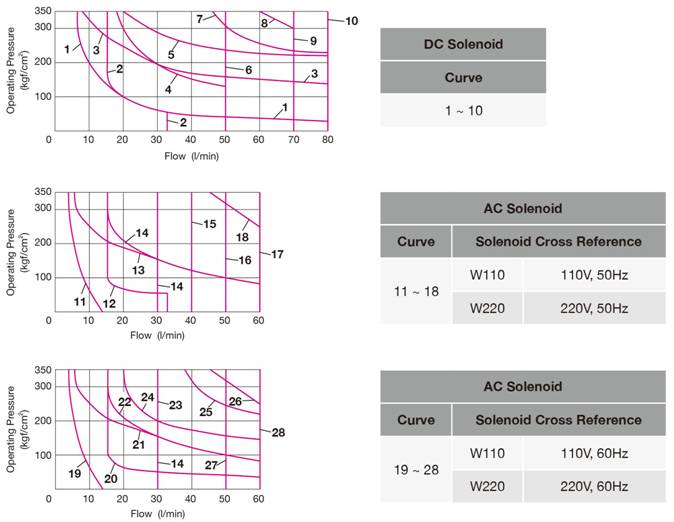

PERFORMANCE LIMITS
|
|
|
Measure at ν=41mm2/s
and t=50°C
Attention:
The performance limits given are for applications
featuring two flow directions (e.g. From P to A and simultaneous return
flow from B to T).Due to the flow force active within the valves the
permitted power limit for directional valves may be considerably less
where there is only one direction of flow (e.g. from P to A and Port B
is blocked)! (Please consult us for applications of this kind)
|
DC
Solenoid
G12
(DC 12V)
G24
(DC 24V)
|
AC Solenoid
W110 W220 50
HZ
W110 (AC
110V, 50 Hz)
W220 (AC
220V, 50 Hz)
|
AC Solenoid
W110 W220 60
HZ
W110 (AC
110V, 60 Hz)
W220 (AC
220V, 60 Hz)
|
|
Curve
|
Symbol
|
Curve
|
Symbol
|
Curve
|
Symbol
|
|
1
|
A, B
|
11
|
A, B
|
19
|
A, B
|
|
2
|
V
|
12
|
V
|
20
|
V
|
|
3
|
A, B
|
13
|
A, B
|
21
|
A, B
|
|
4
|
F, P
|
14
|
F, P
|
22
|
F, P
|
|
5
|
J
|
15
|
G, T
|
23
|
G, T
|
|
6
|
G, H, T
|
16
|
H
|
24
|
J, L, U
|
|
7
|
A/O, A/OF, L, U
|
17
|
A/O, A/OF, C/O, C/OF, D/O, D/OF, E,
J, L, M, Q, R, U, W
|
25
|
A/O, A/OF, Q, W
|
|
8
|
C, D, Y
|
26
|
C, D, Y
|
|
9
|
M
|
27
|
H
|
|
10
|
E, R, C/O, C/OF, D/O, D/OF, Q, W
|
18
|
C, D, Y
|
28
|
C/O, C/OF, D/O, D/OF, E, M, R
|
|
|
|

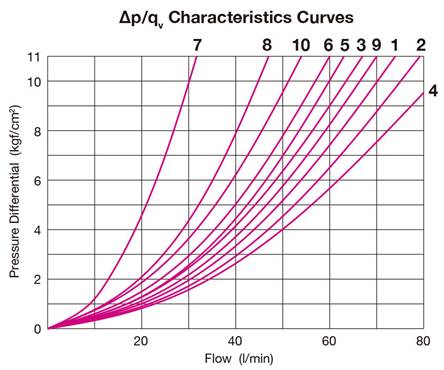

CHARACTERISTIC CURVES
|
|
|
Measure at ν=41mm2/s
and t=50°C
|
Symbol
|
Flow Direction
|
|
P→A
|
P→B
|
A→T
|
B→T
|
|
A, B
|
3
|
3
|
-
|
-
|
|
C
|
1
|
1
|
3
|
1
|
|
D, Y
|
5
|
5
|
3
|
3
|
|
E
|
3
|
3
|
1
|
1
|
|
F
|
1
|
3
|
1
|
1
|
|
T
|
10
|
10
|
9
|
9
|
|
H
|
2
|
4
|
2
|
2
|
|
J, Q
|
1
|
1
|
2
|
1
|
|
L
|
3
|
3
|
4
|
9
|
|
M
|
2
|
4
|
3
|
3
|
|
P
|
3
|
1
|
1
|
1
|
|
R
|
5
|
5
|
4
|
-
|
|
V
|
1
|
2
|
1
|
1
|
|
W
|
1
|
1
|
2
|
2
|
|
U
|
3
|
3
|
9
|
4
|
|
G
|
6
|
6
|
9
|
9
|
|
A, B
|
3
|
3
|
-
|
-
|
|
|
|

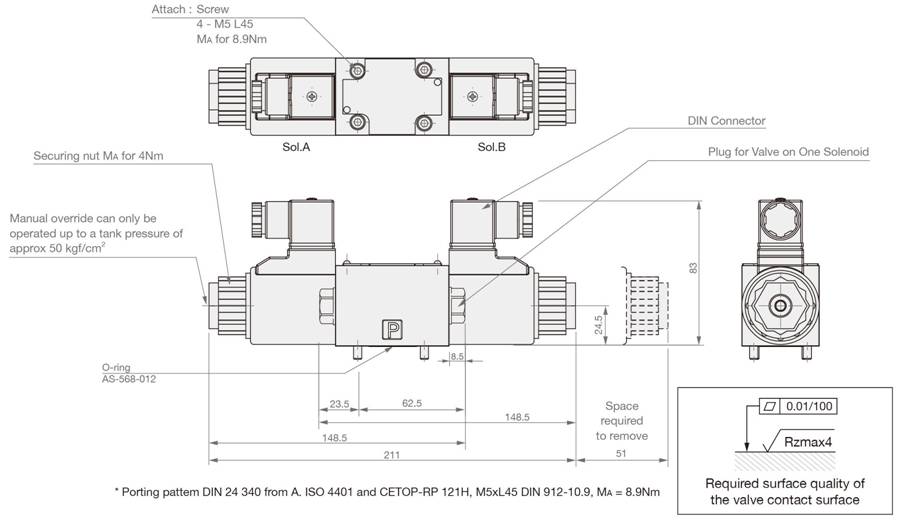

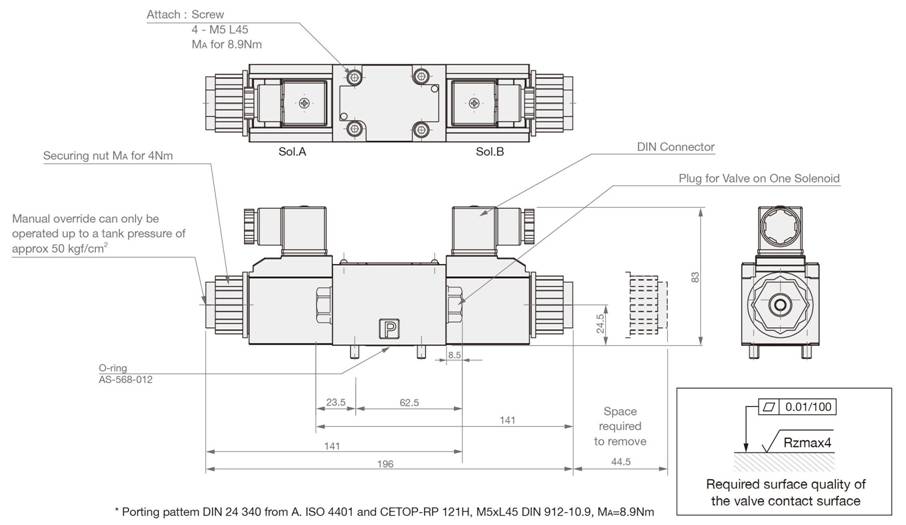

DIMENSION (UNIT : mm)
|
|
|
NG6 DC Type
NG6 AC Type
|
|
