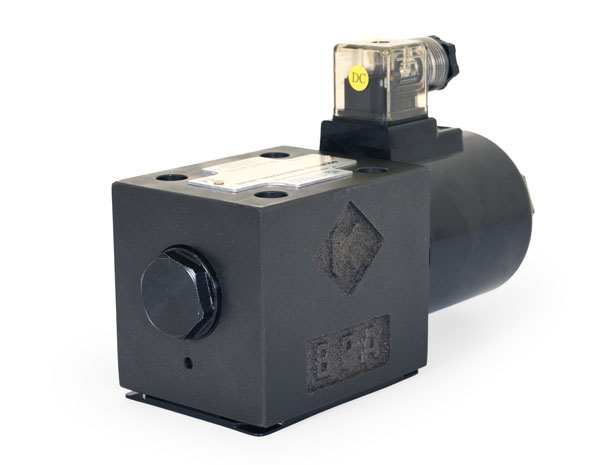

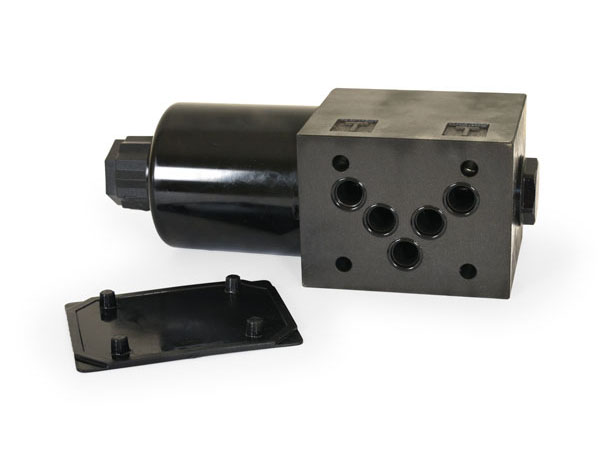

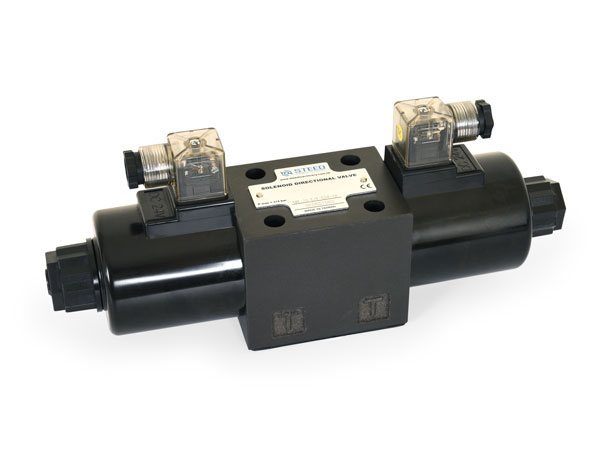

4WE-10

MODEL SPEC.

Orifice

Max. Flow

(l/min)

Max. Pressure

(kgf/cm²)

Tolerant Back Pressure

(kgf/cm²)

Switch Frequency

(times/min)

Weight

( kg )

AC

DC

1 Solenoid

2 Solenoids

1 Solenoid

2 Solenoids

NG10 (Cetop5)

120

315

160

120

3.6

4.3

4.3

5.5

．Operating oil temperature: 5~80°C (41~176°F)

．Filtration mesh: less than 25µm

Specifications & Properties of Solenoids

Power Source	AC				DC
Voltage	AC110V		AC220V		DC12V	DC24V
Hertz	50	60	50	60	-	-
Rated Force (N)	54				100
Rated Stroke (mm)	4				3.6
Total Stroke (mm)	8.5				8.5
Duty Cycle (%)	100				100
Insulation Class	H				B
Power Consumption	38				36
Inrush (VA)	71				36
Voltage Tolerance	100~120		210~230		10.8~13.2	21.6~26.4
Holding Power (VA)	90				-
Switch-On Power (VA)	550				-

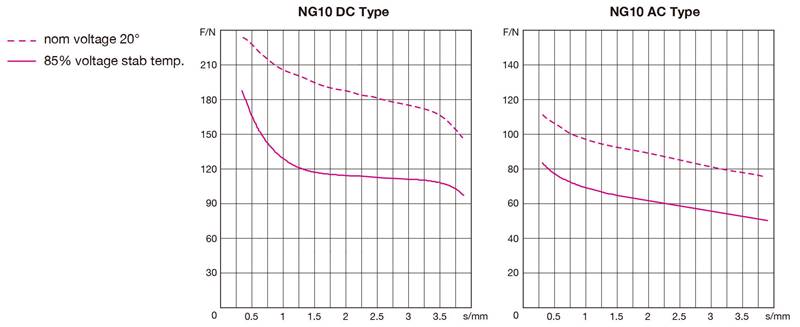

4WD-10_Solenoid curve

ORDER CODES

4 WE - 10 - D O E - G24 - 10

a b - c - d e f - g - h

a. Number of Main ports :

3: 3 main ports

4: 4 main ports

b. Model Name : WE

c. Size :

10: NG6 (Cetop5) 3/8” (03)

d. Type of Valves : please refer to the symbol list (type of valves).

e. Spring Return :

/: with spring return

O: without spring return

OF: without spring return with detent

f. High-power solenoid :

E: wet-pin, with removable coil

g. Power Source :

G12: DC 12V

G24: DC 24V

W110/50: AC 110V, 50Hz

W110/60: AC 110V, 60Hz

W220/50: AC 220V, 50Hz

W220/60: AC 220V, 60Hz

h. Solenoid Appearance :

10: plug-in connation

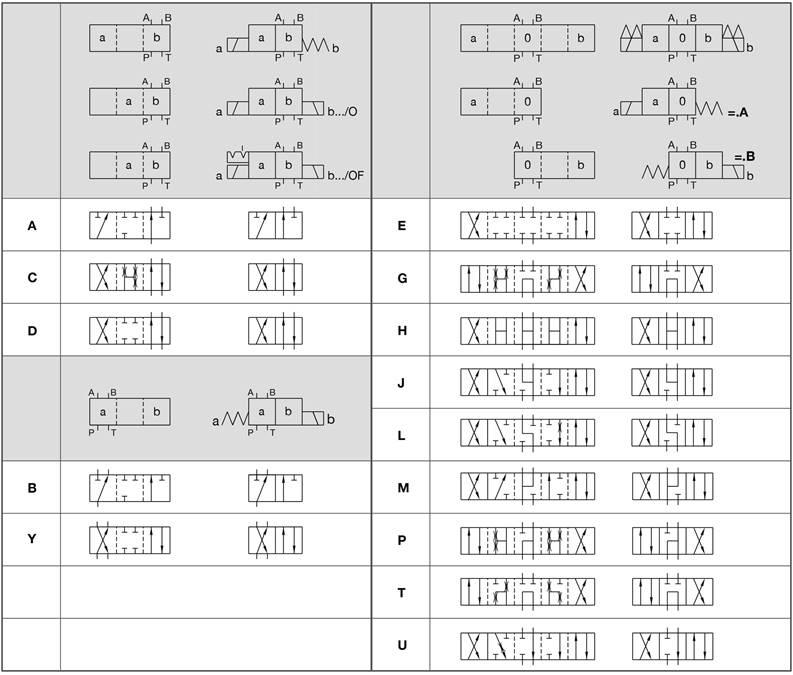

SYMBOL LIST (TYPE OF VALVES)

4WE_symbol web用

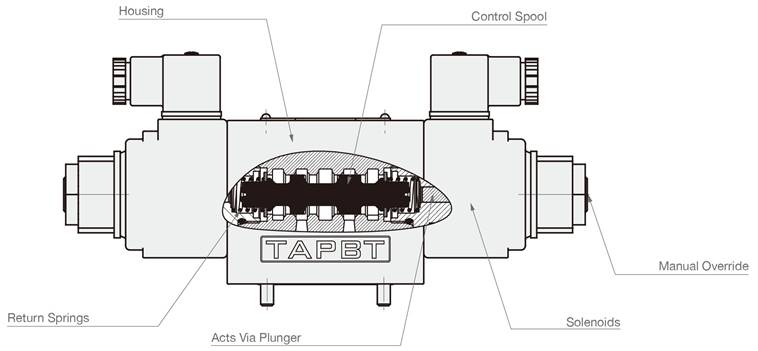

SECTION

4WE-10-AC_section

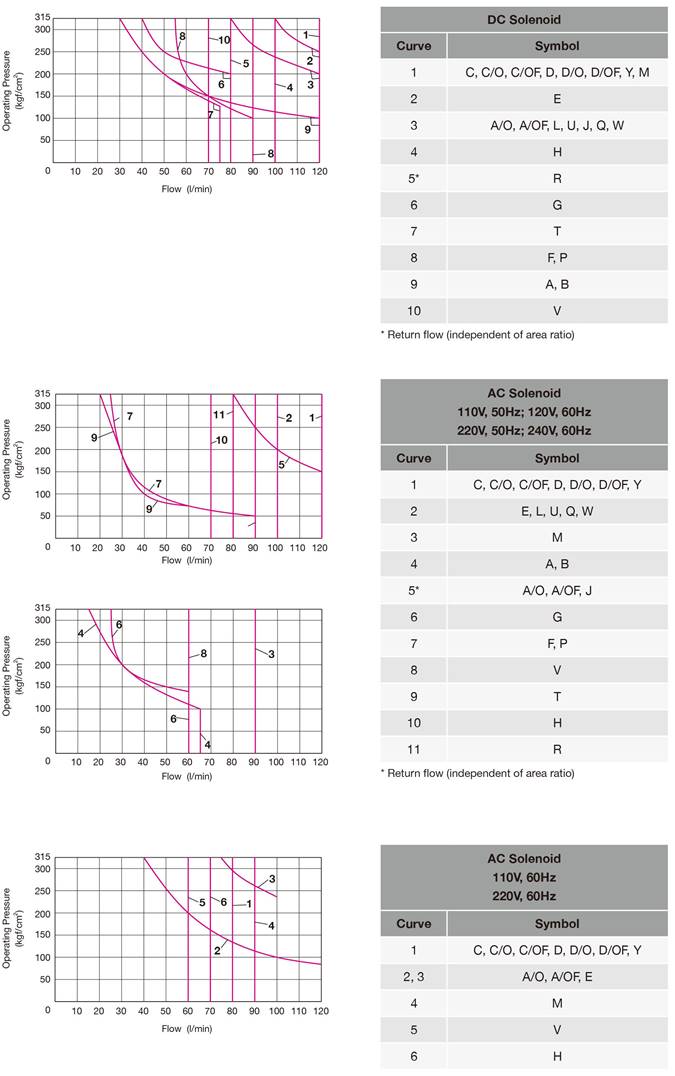

PERFORMANCE LIMITS

Measure at ν=41mm²/s and t=50°C

15_1

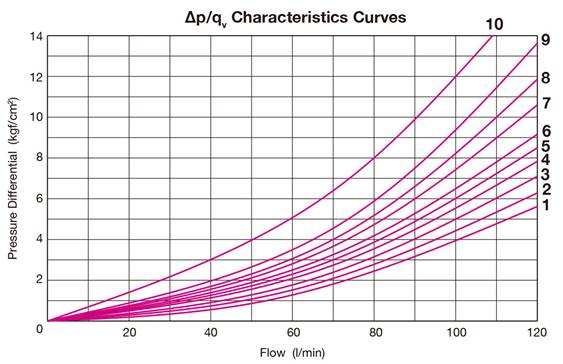

CHARACTERISTIC CURVES

Measure at ν=41mm²/s and t=50°C

4WE-10_curve

Symbol	Flow Direction
Symbol	P→A	P→B	A→T	B→T
A, B	3	3	-	-
C	3	3	4	5
D, Y	5	5	6	6
E	1	1	4	4
F	2	3	7	4
G	3	3	6	7
H	1	1	6	7
J	1	1	3	3
L	2	2	3	5
M	1	1	4	5
P	4	2	5	7
Q	1	2	1	3
R	3	6	4	-
T	3	3	6	7
U, V	2	2	3	3
W	2	2	4	5

OP.POS.	P→A	P→B	A→T	B→T
R	-	9	-	-

MID. POS.	P→A	P→B	B→T	A→T	P→T
F	4	-	-	9	9
P	-	5	8	-	10
G, T	-	-	-	-	9
H	-	-	-	-	3

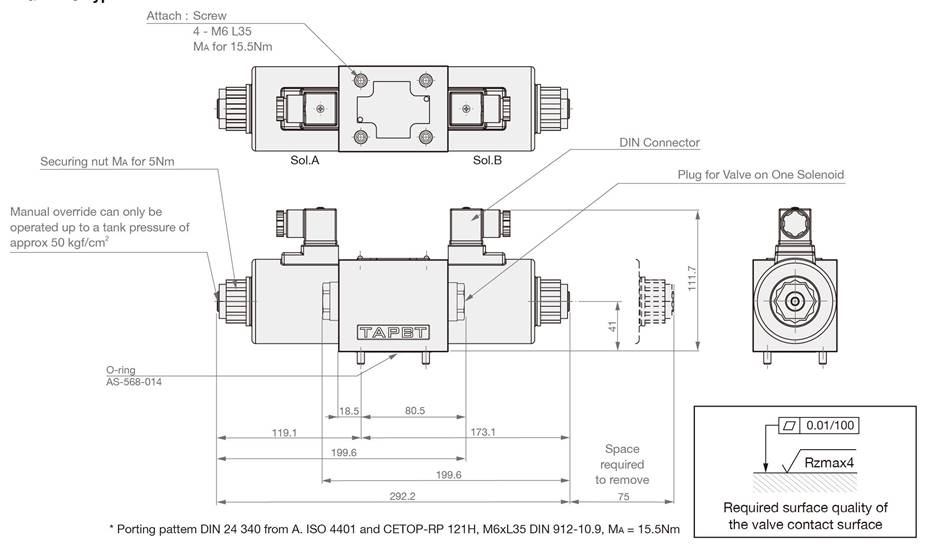

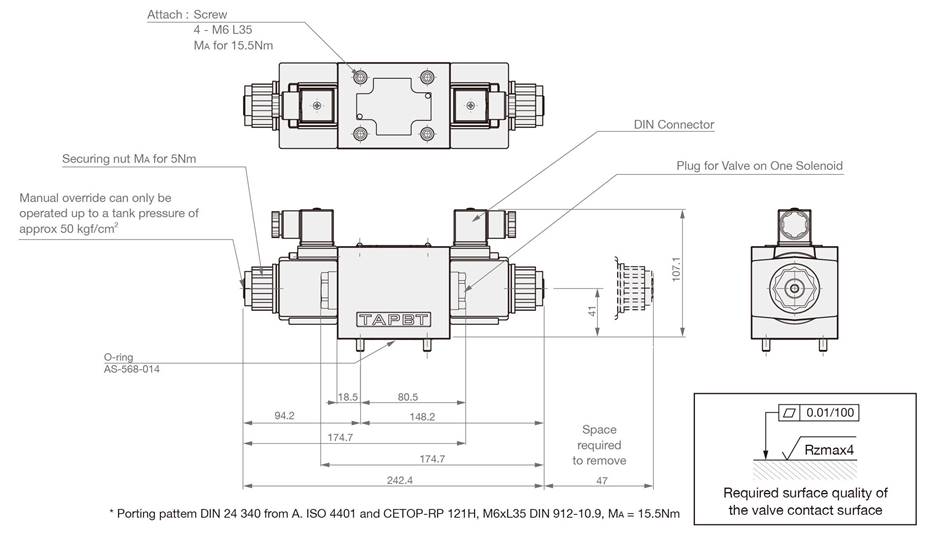

DIMENSION (UNIT : mm)

NG10 DC Type

4WE-10-DC_dim

NG10 AC Type

4WE-10-AC_dim
