MODEL SPEC.
Model
Flow Rate
( liter/min )
Max. Pressure
( kgf/cm2 )
Switch Frequency
( times/min )
Weight
( kg )
KVS-04TL
30
210 bar
60
1.59
ORDER CODES
KVS - 04 TL - D1
a - d c - d
a. Model Name : KVS
b. Port Size : 04:1/2”
c. Thread Connection Lift Valve : TL
d. Power Source :
A1:AC110V, 50/60Hz
A2:AC220V, 50/60Hz
D1:DC12V
D2:DC24V
* PT thread or NPT thread is optional.
SYMBOLS

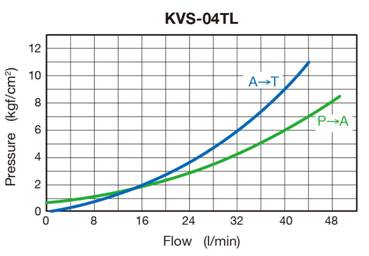

PERFORMANCE CURVES

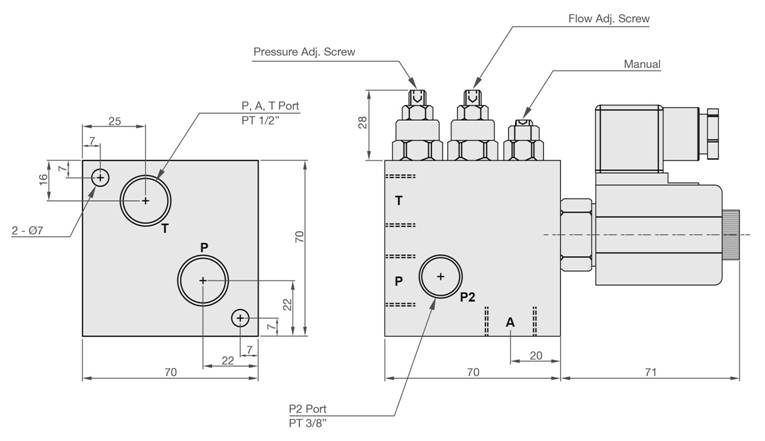

DIMENSION (UNIT : mm)
