RS02 / 1- 1 - 10
a b
- c - d
a. Model
Name : RS02

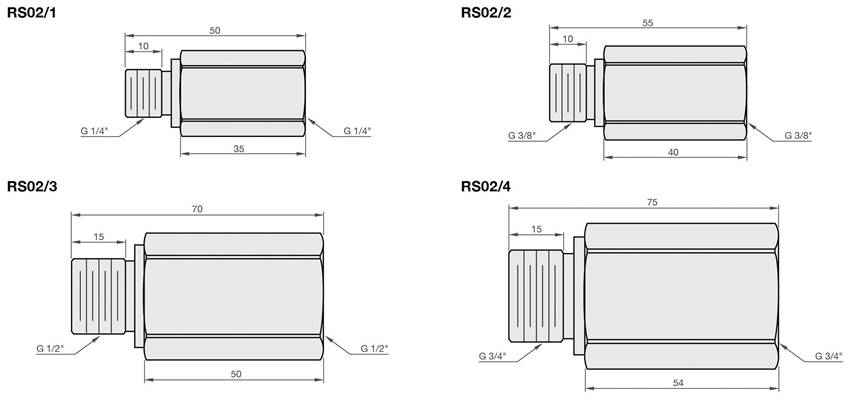

b. Max.
Flow & Thread Connection :
1:25 l/min, G 1/4" - G 1/4"
2:50 l/min, G 3/8" - G 3/8"
3:80 l/min, G 1/2" - G 1/2"
4:150 l/min, G 3/4" - G 3/4"
c. Connect
:
1:in : connect to cylinder
2:out : connect to pipe
d. Design
Number : 10
|
