MODEL SPEC.
|
|
|
Model
|
Free
Flow
( l/min )
|
Max.
Operating Pressure
( kgf/cm2 )
|
Max.
Operating Flow
( l/min )
|
Weight
( kg )
|
|
FKC-02R
|
30
|
150
|
1, 2, 4, 8
|
1.3
|
|
* The most common max. operating flow is 4 l/min.
|
|
ORDER CODES
|
|
|
FKC - 02R - 04
a
- b c - d
a. Model
Name : FKC
b. Thread
Connection :
02:PT 1/4"
c. Knob Side :
R:knob on the right side
d. Max. Operating Flow
:
01:1l/min
02:2l/min
04:4l/min
08:8l/min
|
|
|
SYMBOLS
|
|
|
|
|
|

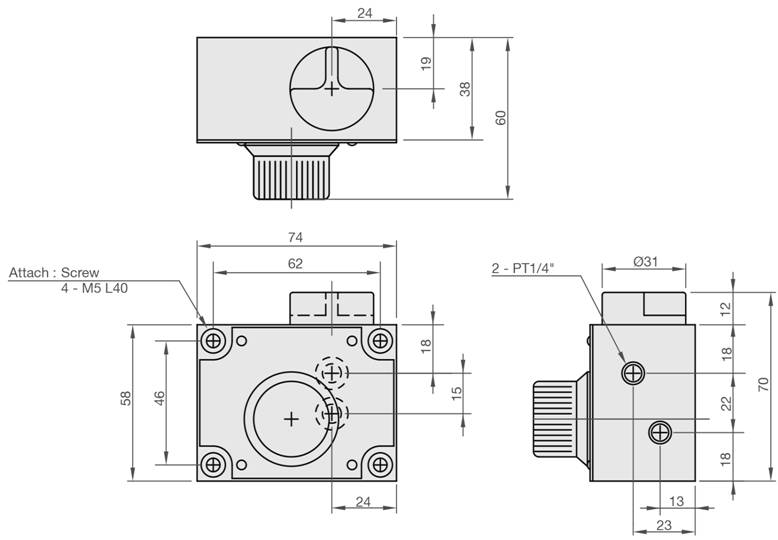

DIMENSION (UNIT : mm)
|
|
|
|
|
