Proportional Flow Control Cartridge, Normally Closed (SPV-30)

MODEL SPEC.

Model	Cavity	Capacity ( l/min )	Operating Pressure ( bar )
Model	Cavity	Capacity ( l/min )	Port 1	Port 2	Port 3
SPV70-30A	SAE-10-3	30	240	207	207
SPV72-30A	SAE-12-3	57	240	207	207
SPV76-30A	SAE-16-3	151	240	207	207

Model	Internal Leakage	Installation Torque ( Nm )	Weight ( kg )
SPV70-30A	197 cc/min fully closed at 207 bar	36.7	0.53
SPV72-30A	0.38 lpm fully closed at 207 bar	47.4	0.70
SPV76-30A	0.38 lpm at zero current	67.8	0.88

Model	Regulated Flow Rate	Max. Input Flow	Max. Flow Rate	Nominal Input Flow
SPV70-30A	bypass blocked : 26 lpm ( 7 gpm ) bypass open : 30 lpm ( 8 gpm )	bypass open : 50 lpm ( 13 gpm )	-	-
SPV72-30A	in 3-port mode : 57 lpm ( 15 gpm )	in 3-port mode : 114 lpm ( 30 gpm )	in 2-port mode : 53 lpm ( 14 gpm )	-
SPV76-30A	3-ported: 94.6 lpm ( 25.0 gpm ) 2-ported: 85.2 lpm ( 22.5 gpm )	bypass open, 3-ported : 151.4 lpm ( 40.0 gpm	-	bypass open, 3-ported: 121 lpm ( 32.0 gpm )

Model	D1		D2		Operating Temperature
Model	Threshold Current	Max. Control Current	Threshold Current	Max. Control Current	-35 ~ 100°C ( -31 ~ 212°F )
SPV70-30A	250 ± 100 mA	1250 ± 150 mA	125 ± 50 mA	600 ± 75 mA
SPV72-30A	350 ± 100 mA	1600 ± 200 mA	175 ± 50 mA	800 ± 100 mA
SPV76-30A	300 ± 100 mA	1600 ± 100 mA	150 ± 50 mA	800 ± 50 mA

ORDER CODES

SPV 70 - 30A - D1 - DG - N

a - b c - d - e - f

a. Valve Size : 70, 72, 76

b. Model Name : SPV-30

c. Flow Range : A

SPV70-30A : 30 l/min ( 8 gpm )

SPV72-30A : 57 l/min ( 15 gpm )

SPV76-30A : 151 l/min ( 40 gpm )

d. Voltage (coil) :

D1:12 VDC

D2:24 VDC

e. Connector (coil) :

DG:DIN connector type

f. Material of Seal :

N:buna-N

V:viton

E:EPDM

H:HNBR

U:polyurethane

SYMBOLS

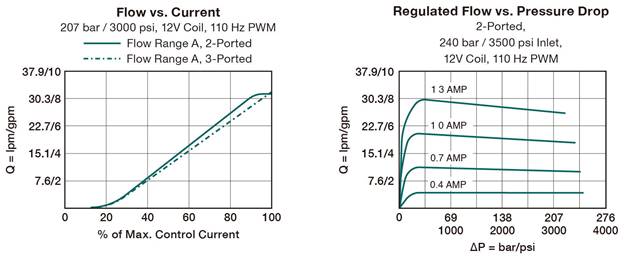

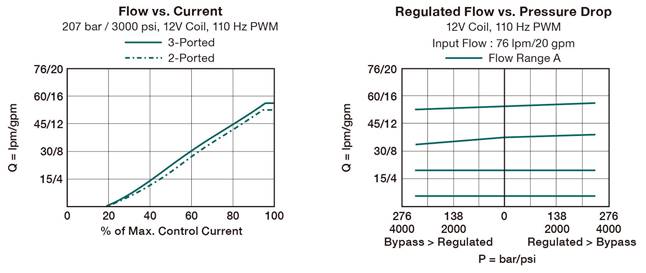

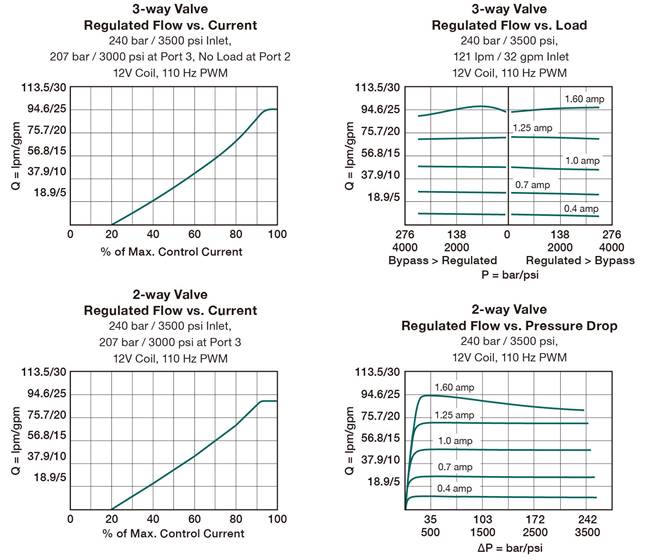

PERFORMANCE CURVES

SPV70-30

SPV72-30

SPV76-30

* 32cSt / 150 ssu oil at 40°C

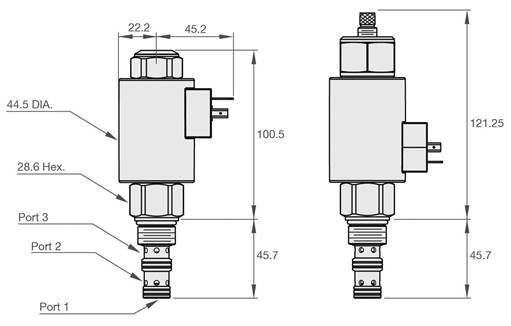

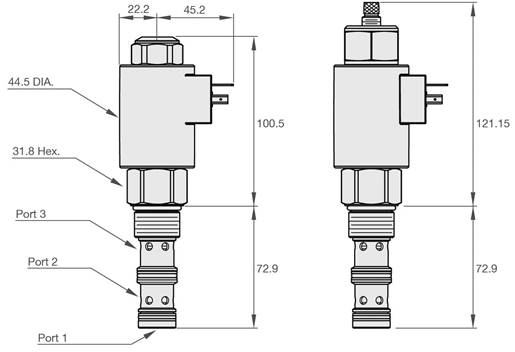

DIMENSION (UNIT : mm)

SPV70-30

SPV72-30

SPV76-30
