MODEL SPEC.
Model
Cavity
Capacity
(l/min )
Max. Pressure
( bar )
SV17-22
E17-2
70
350
SV21-22
E21-2
150
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
0.15
54/66
-35 ~ 100°C
( -31 ~ 212°F )
0.23
80/100
0.33
ORDER CODES
SV17 - 22 - A1 - DG - N
a - b - c - d - e
a. Valve Size : 17, 21
b. Model : SV-22
c. Voltage (coil) :
A1:115 VAC
A2:230 VAC
D1:12 VDC
D2:24 VDC
d. Connector (coil) :
DG:DIN connector type
DL:wiring type
DR:Deutsch DT04-2
e. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS
PERFORMANCE CURVES

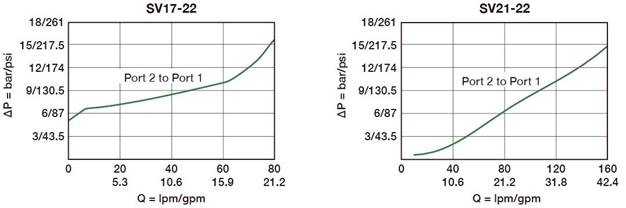

Typical Pressure Drop

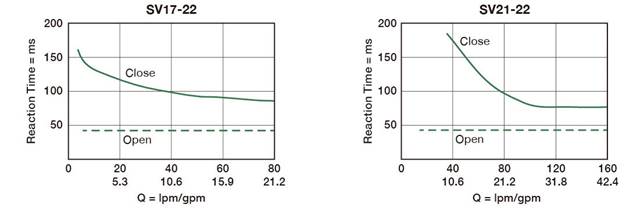

Reaction Time v.s Flow

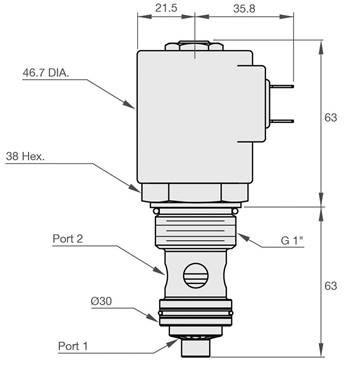

DIMENSION (UNIT : mm)
