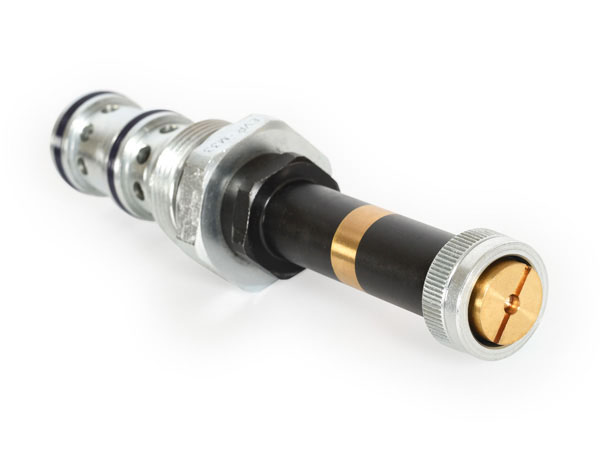

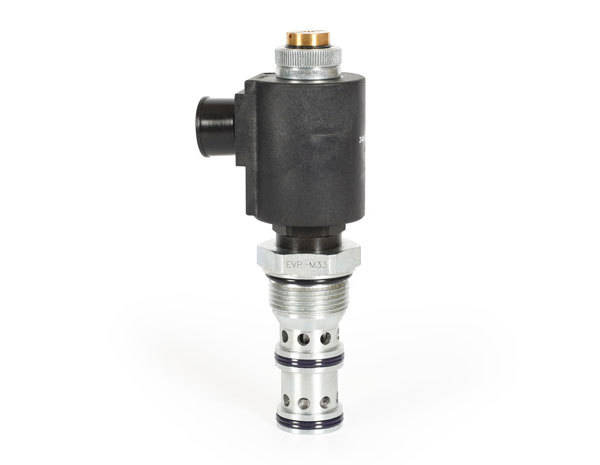

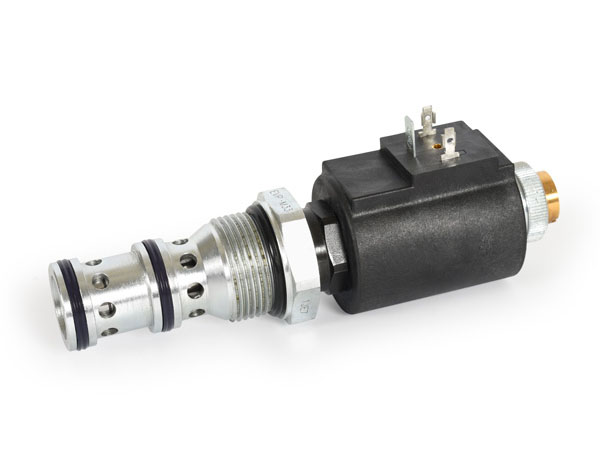

MODEL SPEC.
Model
Cavity
Capacity
( l/min )
Max. Pressure
( kgf/cm2 )
Leakage
( cc/min )
Installation Torque
( Nm )
EVP-M33
C332-3
50
270
less than 150
30/35
Hysteresis
Weight
( kg )
12 VDC
24 VDC
Body
Coil
5%
1900
950
0.5
0.4
ORDER CODES
EVP - M33 - XCN - D24
a - b c - d e f - g h
a. Model Name : EVP
b. Cavity :
M33:C332-3
c. Control Manner :
L:screw adjustment
X:unadjustable
d. Capacity :
C:50 l/min
e. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
f. Connector (coil) :
D:ISO/DIN43650
g. Voltage (coil)
12:12 VDC
24:24 VDC
SYMBOLS
PERFORMANCE CURVES

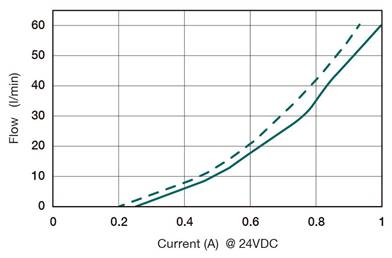

Flow vs. Current

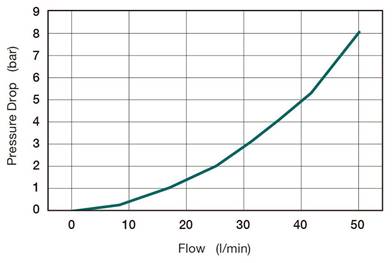

Pressure vs. Flow

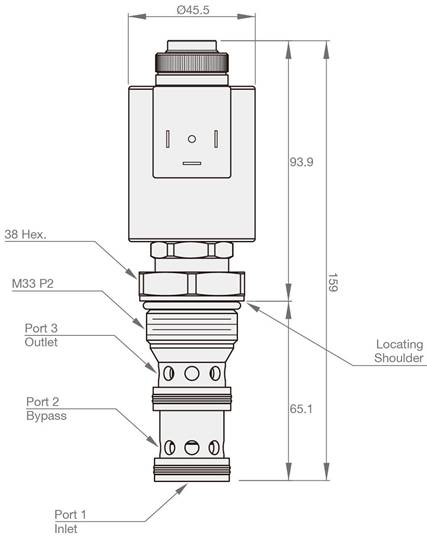

DIMENSION (UNIT : mm)

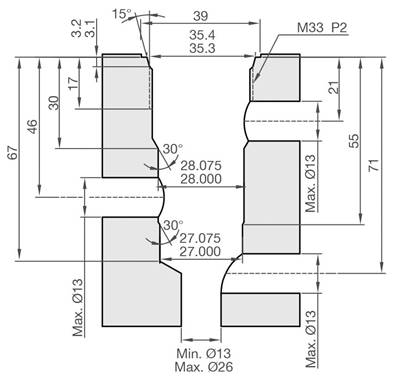

CAVITIES TOOLING
