MODEL SPEC.
Model
Cavity
Rated Flow
(l/min )
Max. Setting Pressure
( bar )
Pilot Ratio
4CK30
A6610
30
350
3 : 1
Internal Leakage
(cc/min )
Installation Torque
( Nm )
Operating Temperature
Weight
( kg )
0.3
45
-30 ~ 90°C
( -22 ~ 194°F )
0.09
ORDER CODES
4CK30 - 1 - N
a - b - c
a. Model Name : 4CK30
b. Pilot Port :
1:internal
c. Material of Seal :
N:buna-N
V:viton
E:EPDM
H:HNBR
U:polyurethane
SYMBOLS

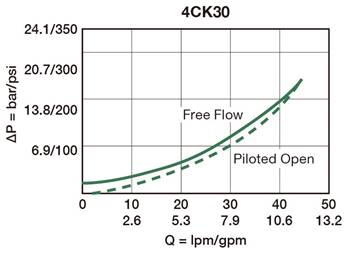

PERFORMANCE CURVES
Pressure Drop
* 40cSt oil at 40°C
DIMENSION (UNIT : mm)
