VPS
- F - 10 - A3 - AB - S
a - b - c - d - e -
f
a.
Model Name : VPS
b. Mounting
:
F:flange type
L:foot type
c. Delivery : 10, 16, 23, 38, 43, 70
d. Pressure Adj. Range : A3:30~210 kgf/cm2

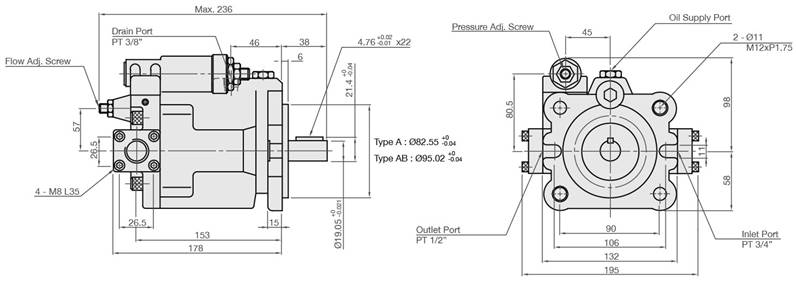

e. Flange Mounting Size * :
A:Ø82.55
AB:Ø95.02
f.
Shaft Type * :
none:straight shaft 19.05
S:spline shaft 13T
* VPS-10, 16, 23 only
|
