      • 21MPa
  • PUMPS

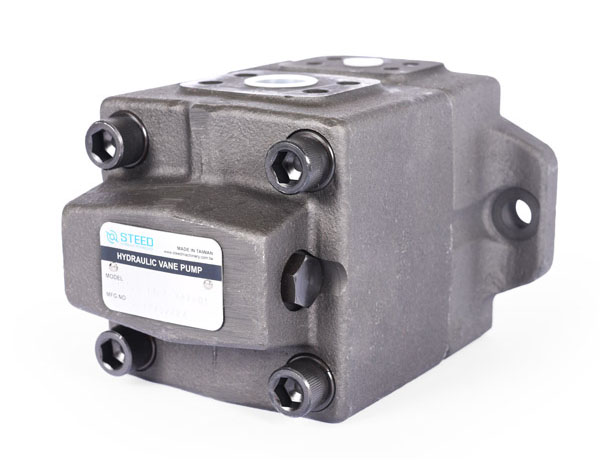

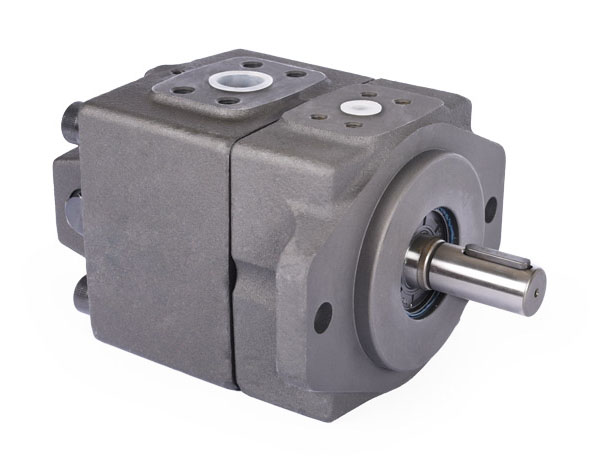

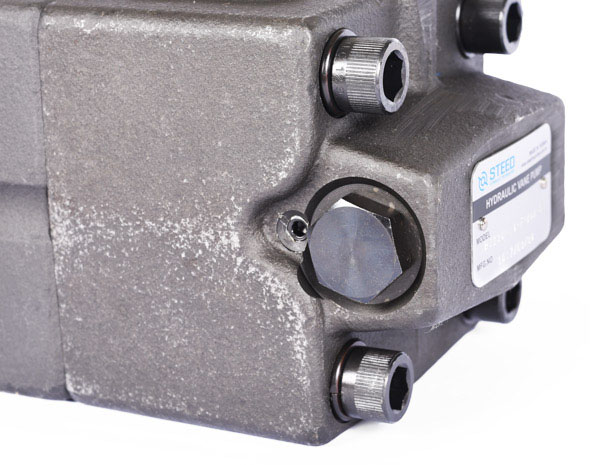

  • 400bar Vane Pump

SHVQ20



MODEL SPEC.

Model

Max. Pressure

( kgf/cm2 )

Using Antiwar Oil or Phosphate Ester Fluid

Using Water Glycol Fluid

Cont.

Peak.

Cont.

Peak.

SHVQ20-4

408

450

255

280

SHVQ20-6

SHVQ20-8

SHVQ20-11

SHVQ20-14

SHVQ20-17

357

380

255

280

SHVQ20-19

SHVQ20-23



Model

Max. Speed

( r.p.m. )

Weight

( kg )

Using Antiwar Oil or Phosphate Ester Fluid

Using Water Glycol Fluid

Using Water-in-oil Emulsions

Max.

Min.

SHVQ20-4

3000

800

1800

1800

18.1

SHVQ20-6

2500

800

SHVQ20-8

2500

800

SHVQ20-11

2300

800

SHVQ20-14

1800

800

SHVQ20-17

1800

800

SHVQ20-19

1800

800

SHVQ20-23

1800

800









ORDER CODES

SHVQ20 - 19 - F - R A A - 01 - 01

      a      -  b  - c  - d e  f  -  g  -  h



a.    Model Name : SHVQ20

b.    Displacement : 4, 6, 8, 14, 17, 19, 23

c.    Mounting Type :

      F:flange type

      L:foot type

d.   Rotation Direction :

      R:clockwise

      L:counter - clockwise

e.    Discharge Position :

      A:upward (normal)

      B:downward

      R:on right hand

      L:on left hand

f.     Suction Position

      A:upward (normal)

      B:downward

      R:on right hand

      L:on left hand

g.   Shaft Type :

      01:normal

      03:spline shaft

h.   Output Dimensional :

      01:normal

      02









SYMBOLS

FD Vane Pump_symbol









DIMENSION (UNIT : mm)

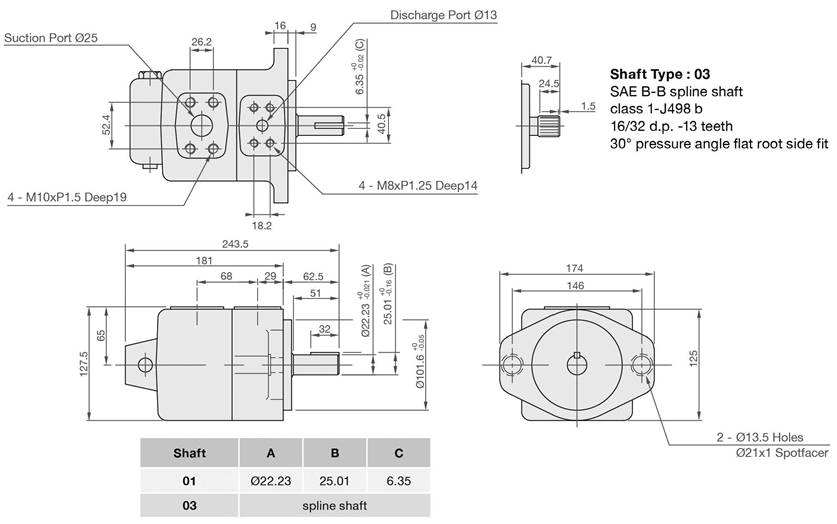

SHVQ20 (Flange Type)

HVQ20-Flange_dim

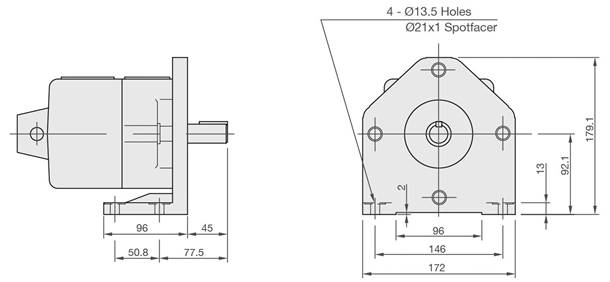

SHVQ20 (Foot Type)

HVQ20-Foot_dim
