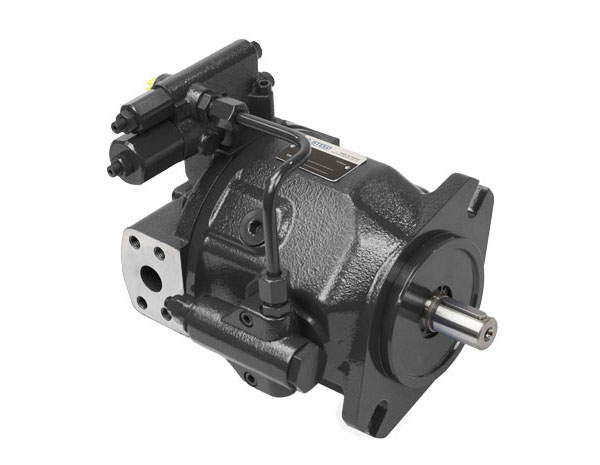

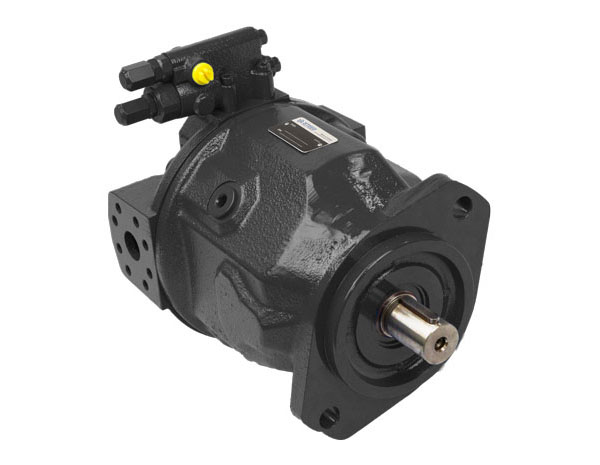

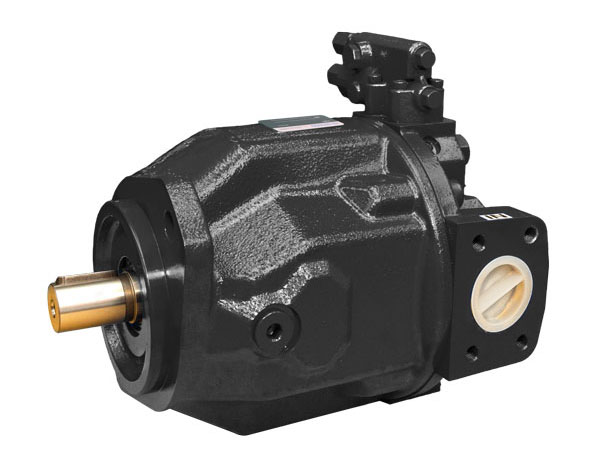

PA10VSO 45
DFLR / 31 R - V P A 12 N00
a
b c
/ d e - f
g h i j
a. Model
Name : PA10VSO
b. Displacement :
18, 28, 45, 71, 100, 140
c. Control
Device : DG, DR, DFR, DFR1, DRG, DFLR
d. Series:
31
e. Direction of
Rotation :
R: clockwise
L: counter Clockwise
f.
Seal Option :
V: viton
P: NBR
g. Shaft Type :
S: splined shaft ANSI B92.1a - standard shaft
R: splined shaft ANSI B92.1a - similar to shaft “S” however for higher
input torque
U: splined shaft ANSI B92.1a - reduced diameter, not for the through
drive
P: parallel keyed shaft DIN 6885 – metric Din 6885
K: parallel keyed shaft DIN 6885 – SAE ISO 3019-1
P: NBR
h. Mounting Flange
:
A: ISO 3019-2 (Metric) 2 bolt
B: ISO 3019-2 (Metric) 4 bolt
C: ISO 3019-1 (SAE) 2bolt
D: ISO 3019-1 (SAE) 4 bolt
i.
Service Line Port :
12: SAE flange port metric fastening thread
42: SAE flange port metric fastening thread
62: SAE flange port UNC fastening thread
92: SAE flange port UNC fastening threadB: ISO 3019-2 (metric) 4 bolt
j.
Through Drive :
N00: without through drive
K01: 82-2 (A), 5/8 in 9T 16/32DP
K52: 82-2 (A), 3/4 in 11T 16/32DP
K68: 101-2 (B), 7/8 in 13T 16/32DP
K04: 101-2 (B), 1 in 15T 16/32DP
K07: 127-2 (C), 1 1/4 in 14T 12/24DP
K24: 127-2 (C), 1 1/2 in 17T 12/24DP
K17: 152-4 (D), 1 3/4 in 13T 8/16DP
K57: Ø63, metric
4-hole, shaft key Ø25
KB2: flange ISO 3019-2 diameter 80, 2-hole, 3/4 in 11T 16/32DP
KB3: flange ISO 3019-2 diameter 100, 2-hole, 7/8 in 13T 16/32DP
KB4: flange ISO 3019-2 diameter 100, 2-hole, 1 in 15T 16/32DP
KB5: flange ISO 3019-2 diameter 125, 2-hole, 1 1/4 in 14T 12/24DP
KB6: flange ISO 3019-2 diameter 125, 2-hole, 1 1/2 in 17T 12/24DP
KB7: flange ISO 3019-2 diameter 180, 4-hole, 1 3/4 in 13T 8/16DP
|
