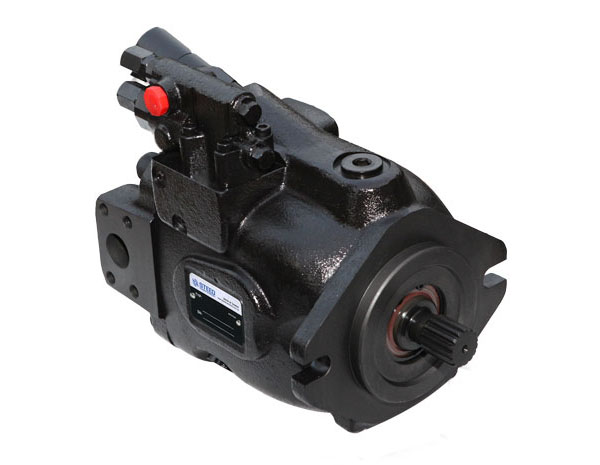

PA10VO 63
LA8D / 52 R - V P A 62 K01
a
b c
/ d e - f g
h i j
a. Model
Name : PA10VO
b. Displacement : 18,
28, 45, 60, 63, 85, 100
c. Control
Device : DR, DFR, DRF, DFR1, DRS, EFD, DRG, ED71, ED72,
ER71, ER72, LA5D, LA6D, LA7D, LA8D, LA9D, LA.DG, LA.DS, LS.S, EP1D,
EP2D, EP1DF, EP2DF, EP1DS, EP2DS, EP1ED, EP2ED, EK1DF, EK2DF, EK1DS,
EK2DS, EK1ED, EK2ED
d. Series:
52, 53
e. Direction of
Rotation :
R: clockwise
L:
counter clockwise
f.
Seal Option :
V: FKM
(fluor-caoutchouc)
g. Shaft Type :
S: splined shaft ANSI B92.1a - standard shaft
R: splined shaft ANSI B92.1a - similar to shaft “S” however for higher
input torque
U: splined shaft ANSI B92.1a - reduced diameter, not for the through
drive
W: similar to shaft "U", however for higher torque
K: parallel shaft SAE with key, not for through drive
C: tapered with woodruff key torque
U: splined shaft ANSI B92.1a - reduced diameter, not for the through
drive
P: parallel keyed shaft DIN 6885 – metric din 6885
K: parallel keyed shaft DIN 6885 – SAE ISO 3019-1
P: NBR
h. Mounting Flange
:
C: ISO 3019-1 (SAE) 2bolt
D: ISO 3019-1 (SAE) 4 bolt
i.
Service Line Port :
61: SAE flange port at rear, UNC fixing thread (not for through drive)
62: SAE flange port on opposite side, UNF fixing thread (for through
drive)
64: UNF threaded ports, rear (not for through drive)
j.
Through Drive :
N00: without through drive
K01: SAE J744 flange, diameter 82-2 (A), 5/8 in 9T 16/32DP
K52: SAE J744 flange, diameter 82-2 (A), 3/4 in 11T 16/32DP
K68: SAE J744 flange, diameter 101-2 (B), 7/8 in 13T 16/32DP
K04: SAE J744 flange, diameter 101-2 (B), 1 in 15T 16/32DP
K15: SAE J744 flange, diameter 127-4 (C), 1 1/4 in 14T 12/24DP
K16: SAE J744 flange, diameter 127-4 (C), 1 1/2 in 17T 12/24DP
K07: SAE J744 flange, diameter 127-2 (C), 1 1/4 in 14T 12/24DP
K24: SAE J744 flange, diameter 127-2 (C), 1 1/2 in 17T 12/24DP
|
