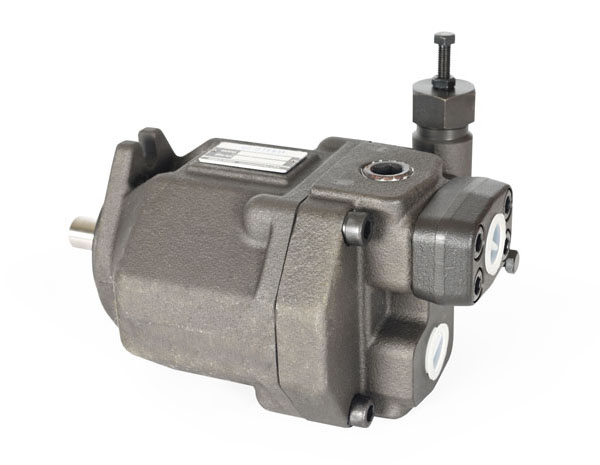

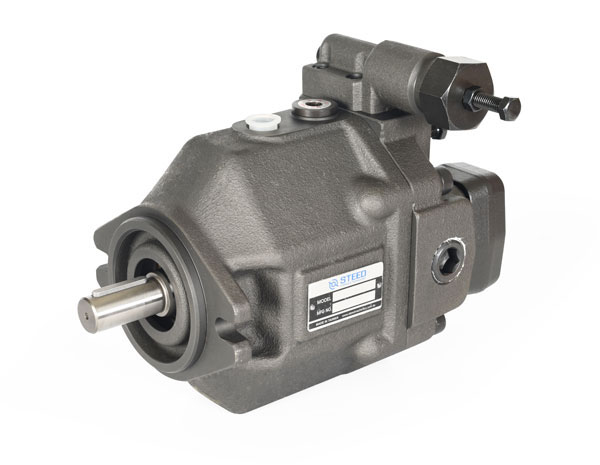

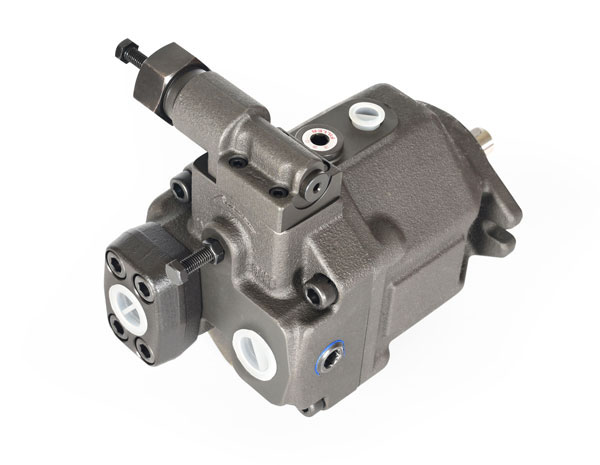

MODEL SPEC.
|
|
|
Model
|
Geometric
Displacement
( cm3/rev )
|
Min. Adj. Flow
( cm3/rev )
|
Weight
( kg )
|
|
AR16
|
15.8
|
6.0
|
11.9
|
|
AR22
|
22.2
|
8.5
|
12.6
|
|
Model
|
Operating Pressure
( MPa )
|
Speed
( r.p.m. )
|
|
Rated
|
Intermittent
*
|
Min.
|
Max.
|
|
AR16
|
16
|
16
|
600
|
1800
|
|
AR22
|
16
|
16
|
600
|
1800
|
* When setting the pressure, make
sure the full cut-off pressure never exceeds the max. intermittent
pressure.
|
|
|
ORDER CODES
|
|
|
AR
16 - F R 01 - C S
- 20
a b c d e
- f g - h
a.
Model Name : AR
b. Delivery
: 16, 22
c.
Mounting :
F: flange type
d. Direction
of Rotation ( Viewed from Shaft Side ) :
R: clockwise
L: counter clockwise
e. Control
Device: 01
f. Pressure
Adj. Type :
B: 2~70 bar
C: 12~210 bar
g. Port
Position :
none: axial port
S: side port
h. Design
Number : 20
|
|
|
SYMBOLS
|
|
|
|
|
|

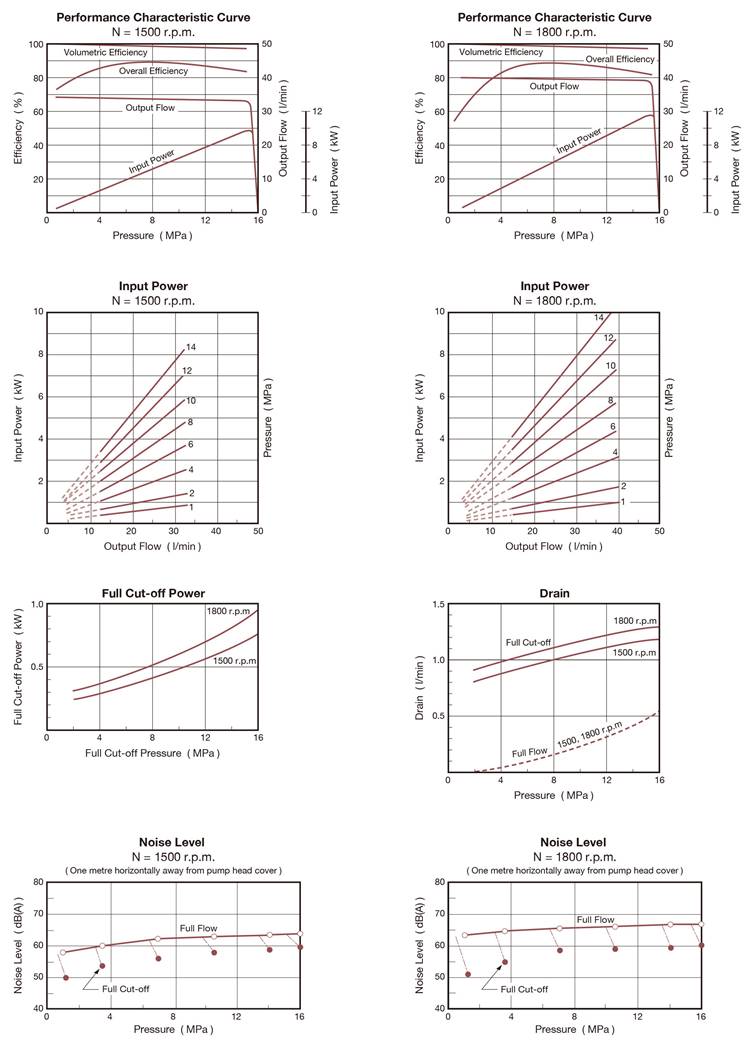

Curve
|
|
|
AR16
AR22
* Hydraulic oil : ISO VG32, oil
temperature : 50°C
|
|
|
DIMENSION (UNIT
: mm)
|
|
|

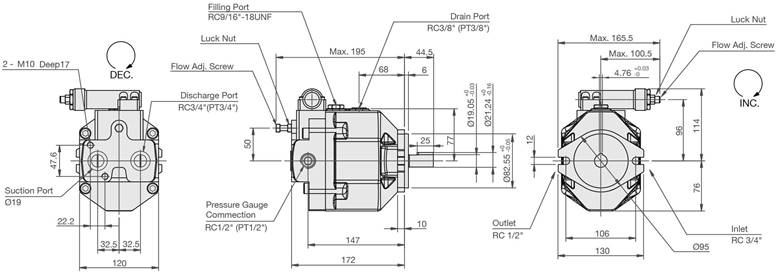

AR16, 22 ( Axial Port )

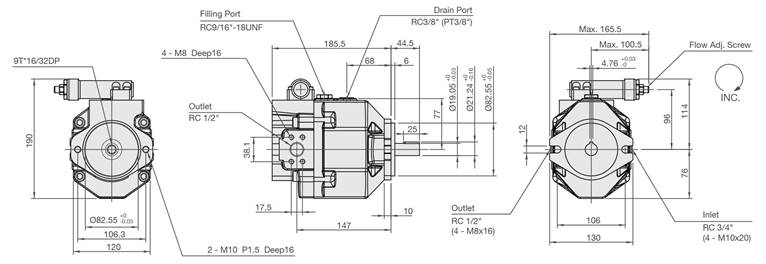

AR16, 22 ( Axial Port )

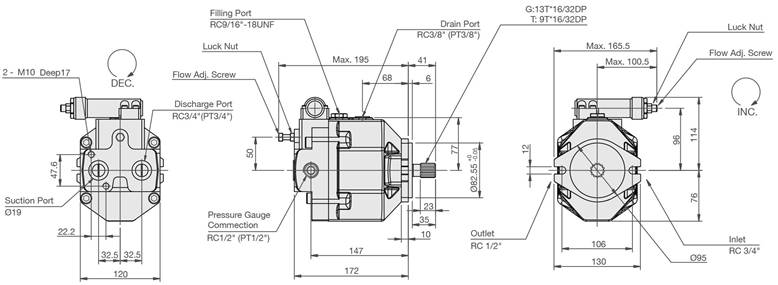

( Splined Shaft )
AR16, 22 ( Side Port )
|
|
|
|
