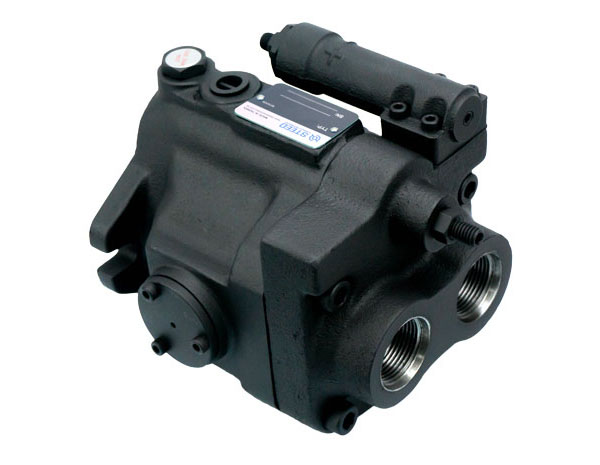

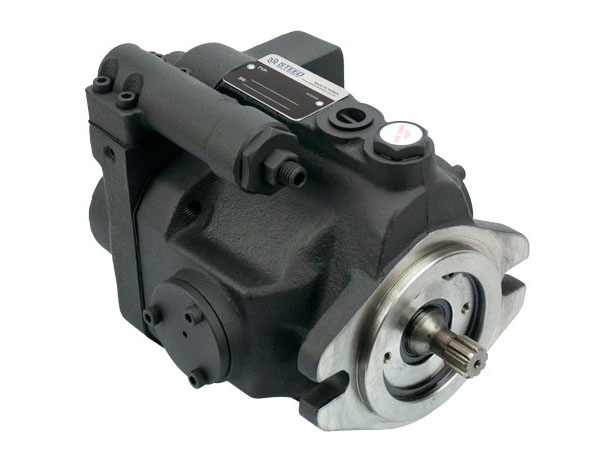

MODEL SPEC.
|
|
|
Model
|
Pressure
Adj. Range
(
kgf/cm2 )
|
Operating
Pressure
(
bar)
|
|
Rated
|
Max.
|
|
V8
|
1:8~70
2:15~140
3:20~210
4:20~250
|
175
|
280
|
|
V10
|
|
V12
|
|
V15
|
|
V18
|
|
V23
|
|
V25
|
|
V38
|
|
V42
|
|
V50
|
1:
8~70
2:
15~14
3:20~210
|
|
V70
|
|
Model
|
Delivery
7
bar
1500
r.p.m.
(
l/min )
|
Delivery
7
bar
1800
r.p.m.
(
l/min )
|
Speed
(
r.p.m. )
|
Weight
(
kg )
|
|
Min.
|
Max.
|
Flange Type
|
|
V8
|
12
|
14.4
|
500
|
1800
|
13
|
|
V10
|
15
|
18
|
13
|
|
V12
|
18
|
21.6
|
13
|
|
V15
|
22.5
|
27
|
13
|
|
V18
|
26.7
|
32
|
13
|
|
V23
|
35.4
|
41.4
|
22
|
|
V25
|
37.5
|
45
|
22
|
|
V38
|
56.7
|
68
|
26
|
|
V42
|
63.0
|
76
|
26
|
|
V50
|
77.2
|
92.7
|
56
|
|
V70
|
104.5
|
125.4
|
56
|
|
|
|
ORDER CODES
|
|
|
V 15
A 3 R B S1 - F 40 A A V
a b
c d e f g -
h i j k l
a. Model
Name : V
b. Delivery
at 1800 r.p.m. : 8, 10, 12, 15, 18, 23, 25, 38, 42,
50, 70
c. Control
Device : A, G, HLA, HLB, HLC, B, C, CG, CR, D, DG, E, EG, F, FG, GM,
GJ, GR, GB, GC, HQ, HK
d. Pressure Adj.
Range :
1: 8~70 bar
2: 15~140 bar
3: 20~210 bar
4: 20~250 bar
e. Direction of
Rotation :
R: clockwise
L: counter clockwise
f.
Pipe Connection :
none: side ports (V8~V70)
B: rear ports (V23~V70)
B2: side ports and rear ports (V23, V25, V38, V42)
g. Shaft Type :
none
<V15 & V18>
S: 13T 16/32 DP
S1: 9T 16/32 DP
S2: 11T 16/32 DP
<V23 & V25 & V38 & V42>
S: 13T 16/32 DP
S1: 15T 16/32 DP
S2: 13T 16/32 DP longer
<V50 & V70>
S: 14T 12/24 DP
S1: 17T 12/24 DP
h. Voltage :
none
A: AC 110V, 50/60Hz
B: AC 110V, 60Hz
C: AC 220V, 50/60Hz
D: AC 220V, 60Hz
E: DC 12V
F: DC 24V
i.
Thread Code :
10: PT(RC)
40: BSPP (G)
50: NPT
60: UNF
j.
Thru Drive & 2nd Pump :
A: single pump
B: prepared for thru drive
C: Ø50.8mm
D: Ø82.55mm
E: Ø101.6mm
F: Ø127mm
G: Ø165.1mm
H: Ø127mm
I: Ø63mm
J: Ø80mm
K: Ø100mm
L: Ø125 mm
M: Ø160mm
N: Ø200mm
k. Mounting :
none: standard
A: SAE 2-bolt (only available for V15 and V18)
l.
Seal Type :
none: NBR
V: viton
|
|
|
SYMBOLS
|
|
|
|
|
|
DIMENSION (UNIT : mm)
|
|
|

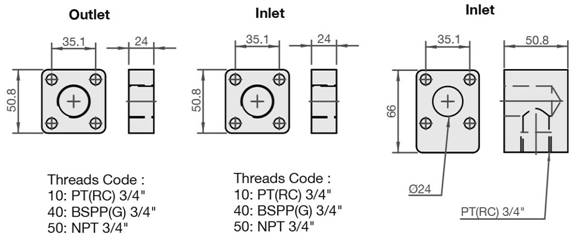

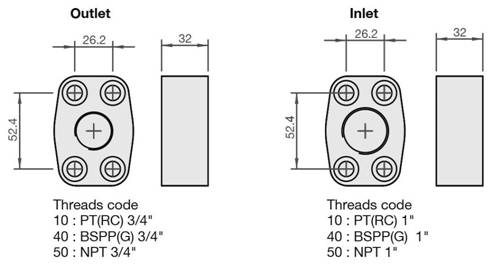

V15, V18 Inlet & OutletV15A, V18A

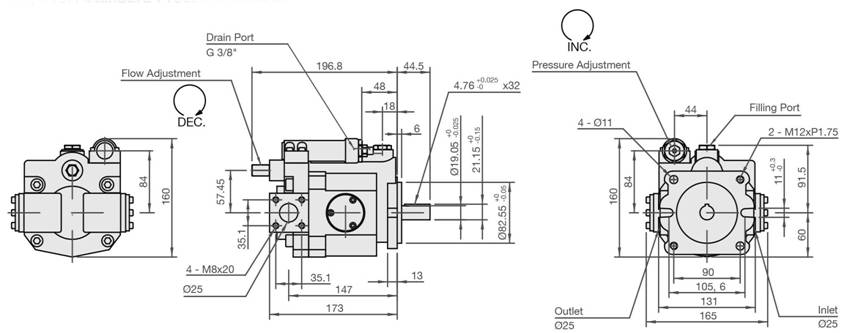

Standard Pressure Control

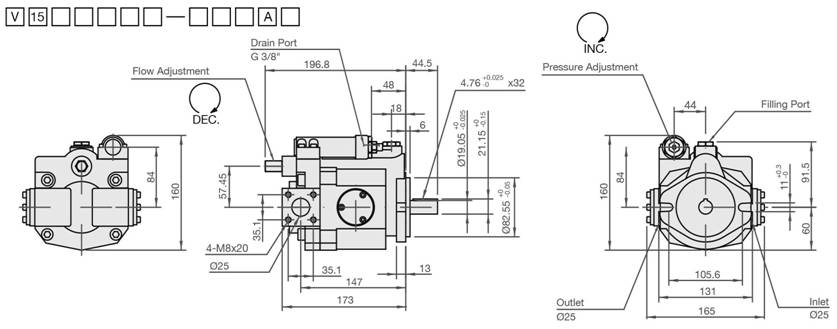

V15A, V18A Standard Pressure Control (SAE A 2-bolt)

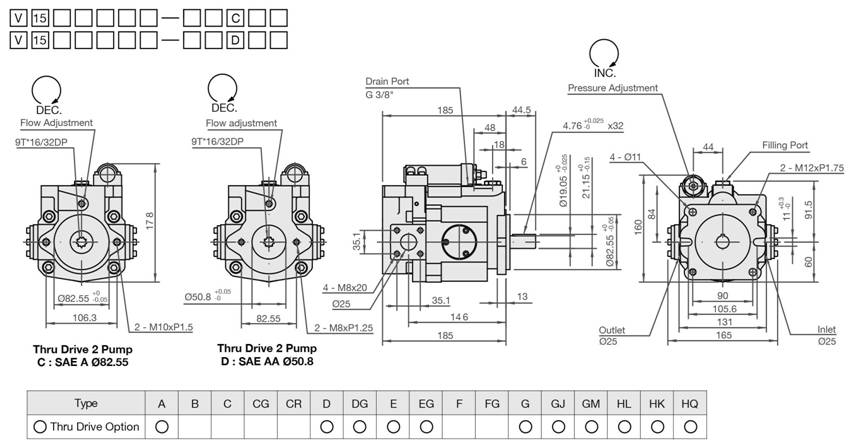

V15, V18 Thru Drive (SAE AA Ø50.8, code C)
Thru Drive (SAE A Ø82.55, code D)

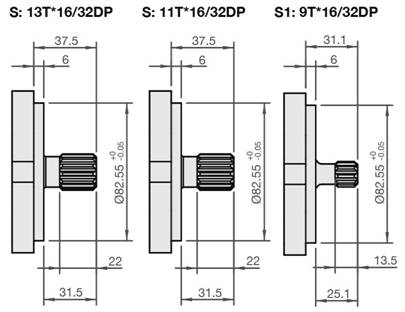

V15, V18 Splined Shaft Type
V15, V18 Inlet & Outlet
V23A, V25A Standard Pressure Control

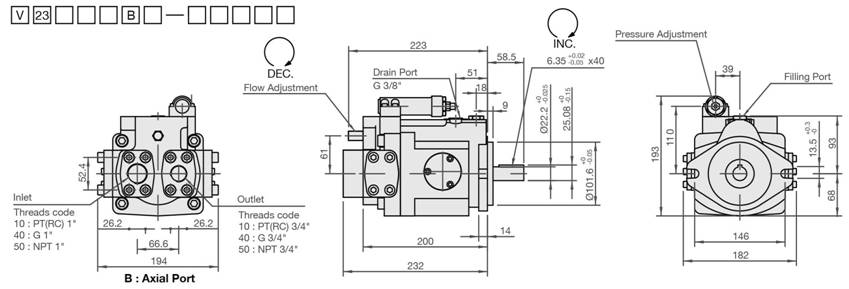

V23, V25 Rear Port

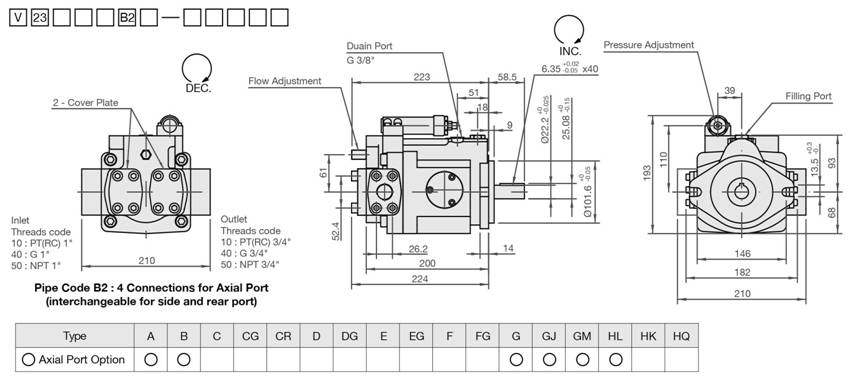

V23, V25 4 Connections for Rear Port

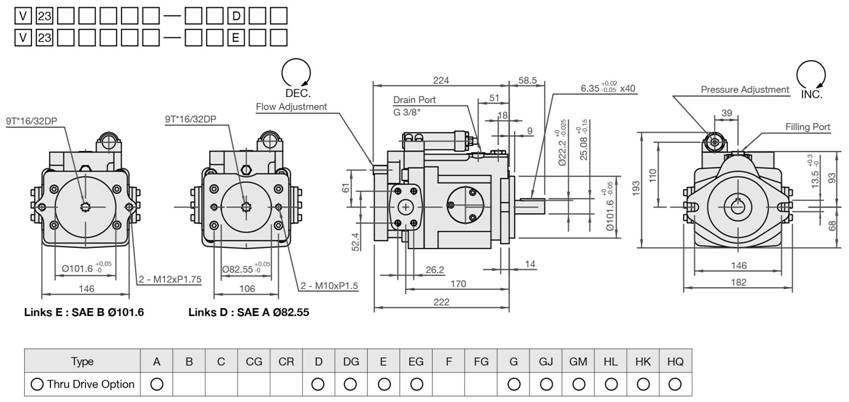

V23, V25 Thru Drive (SAE A Ø82.55, code D)
Thru Drive (SAE B Ø101.6, code E)

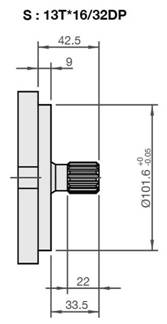

V23, V25 Splined Shaft Type

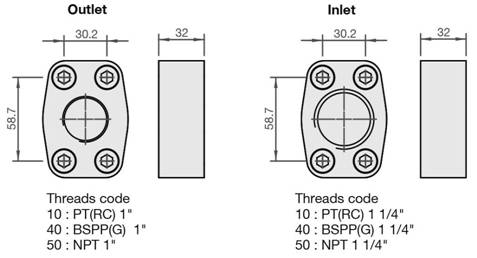

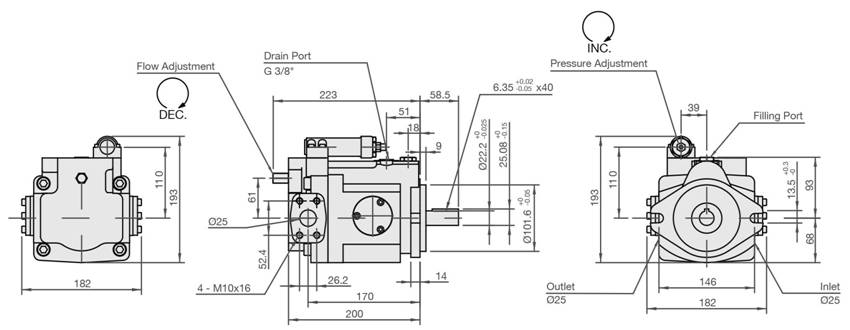

V23, V25 Inlet & Outlet

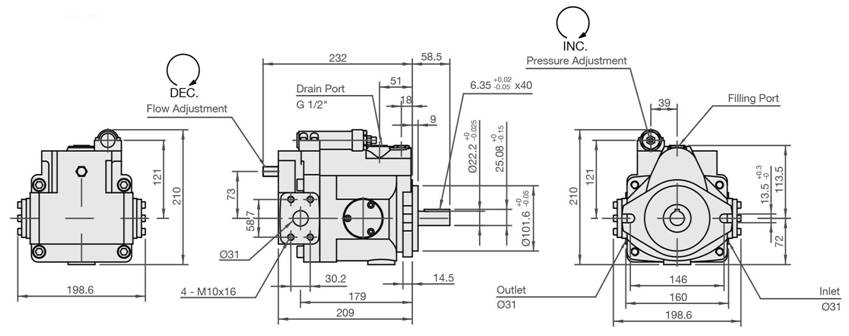

V38A, V42A Standard Pressure Control

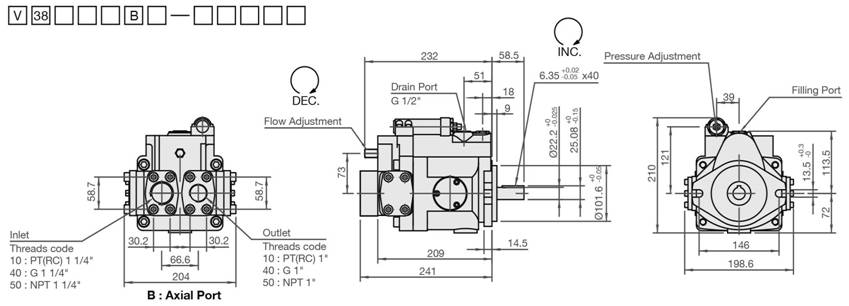

V38, V42 Rear Port

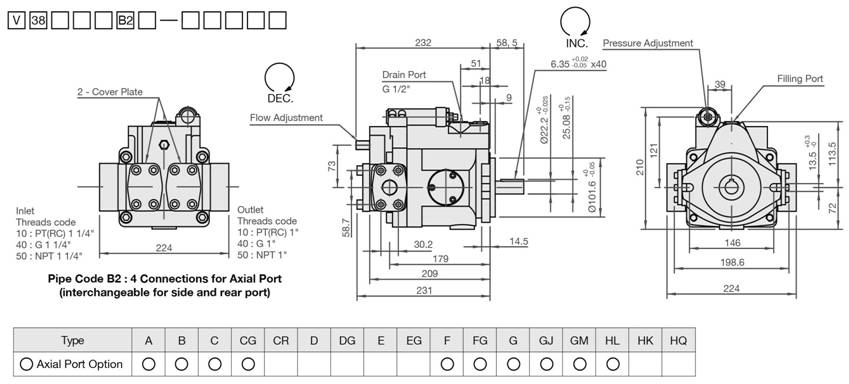

V38, V42 4 Connections for Rear Port

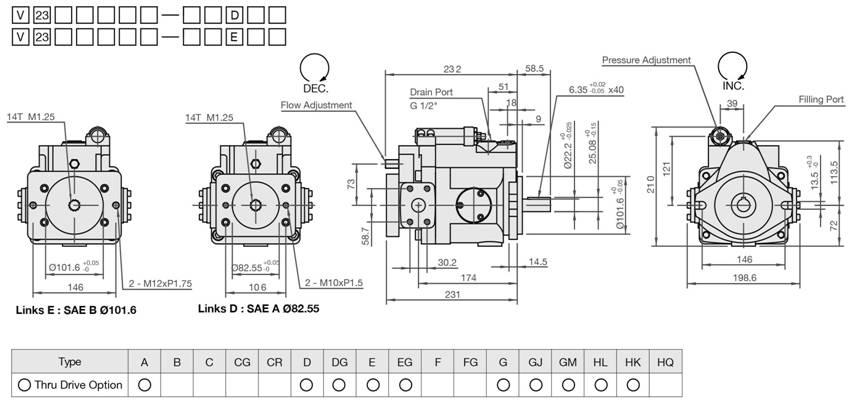

V38, V42 Thru Drive (SAE A Ø82.55, code D)
Thru Drive (SAE B Ø101.6, code E)

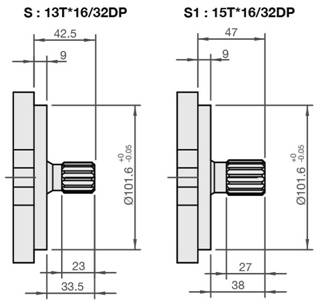

V38, V42 Splined Shaft Type

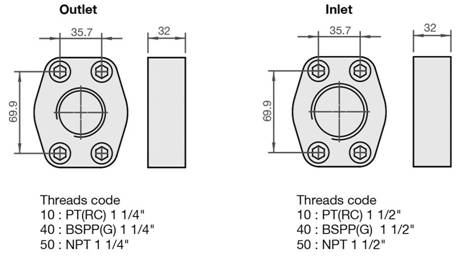

V38, V42 Inlet & Outlet

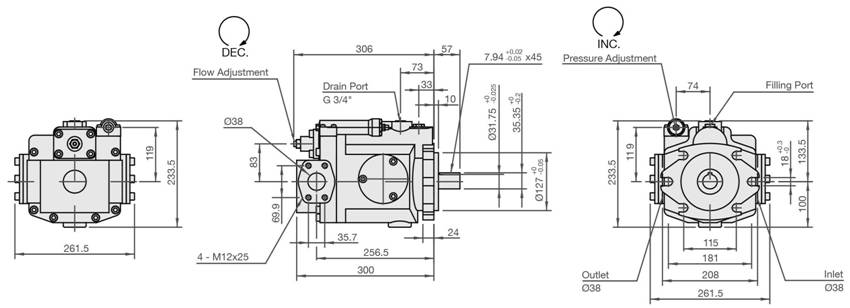

V50A, V70A Standard Pressure Control

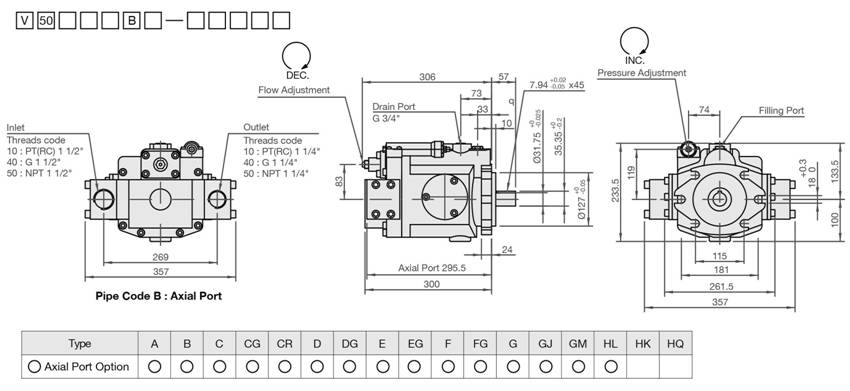

V50, V70 Rear Port

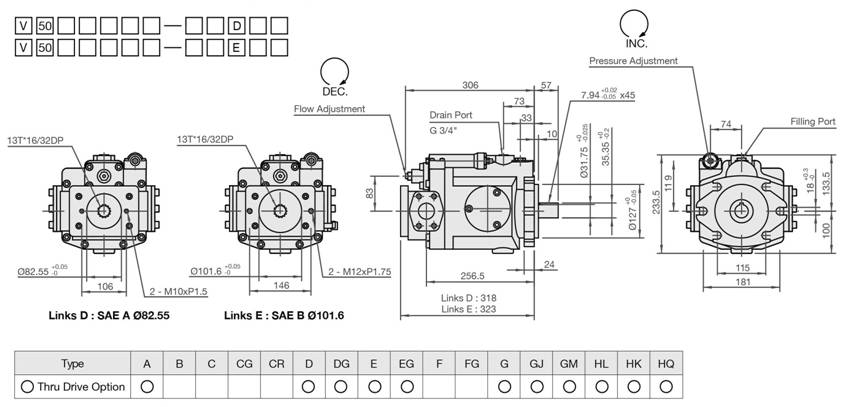

V50, V70 Thru Drive (SAE A Ø82.55, code D)
Thru Drive (SAE B Ø101.6, code E)

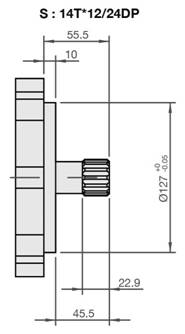

V50, V70 Splined Shaft Type
V50, V70 Inlet & Outlet
|
|
|
|
