A
16 - F R 01 - H - S - K - 32
a
b - c d e - f - g
- h - i
a.
Model Name : A
b. Delivery
: 10, 16, 22, 37, 56
c.
Mounting :
F: flange type
d. Direction
of Rotation ( Viewed from Shaft Side ) :
R: clockwise direction
e. Control
Type :
01:pressure compensator type
f. Pressure
Adj. Range ( MPa ) :
H: A10: 2.0~21
A16, A22, A37, A56: 1.2~21
B: 1.2~7
g. Port
Position :
none:axial port

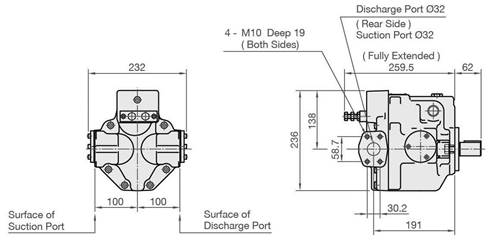

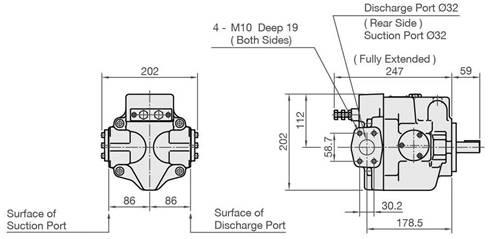

S:side port *
h. Shaft
Extension :
K:keyed shaft
i. Design
Number : 32
* Only for A37, A56
|
