MODEL SPEC.
Model
Displacement
( cm3/rev )
Operating Pressure
( bar )
Max. Pressure
Max. Speed
( r.p.m. )
Weight
( kg )
SDL1-21
20.25
350
400
1800
13.5
SDL1-28
27.00
SDL1-35
33.75
SDL1-42
40.50
SDL1-48
47.25
SDL1-52
51.97
SDL1-55
54.00
300
1500
SDL1-60
59.30
Direction of Rotation
Suction Port Pressure
Viscosity
( mm2/s )
Operating Temperature
Filtration Fineness
Bi-Direction
0.85 ~ 2
10 ~ 100
-15 ~ 100°C ( 5 ~ 212°F )
>200 bar : 10 um <200 bar : 25 um
ORDER CODES
SDL1 - 35 - 1 5E
a - b - c d
a. Model Name : SDL1
b. Displacement : 21, 28, 35, 42, 48, 52, 55, 60
c. Thread : 1:PF (BSPP, G)
d. Mounting & Shaft Type :
2C:DIN 5462 (8*32*36)
5E:SAE B - 13T
SYMBOLS

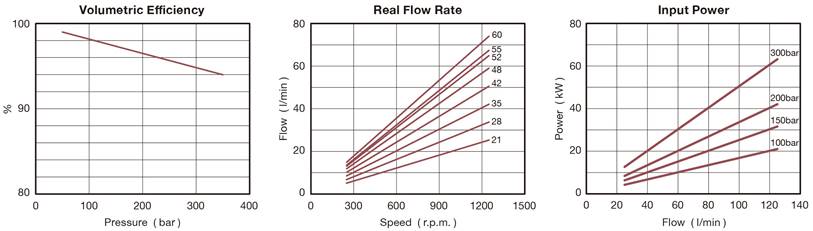

CURVE

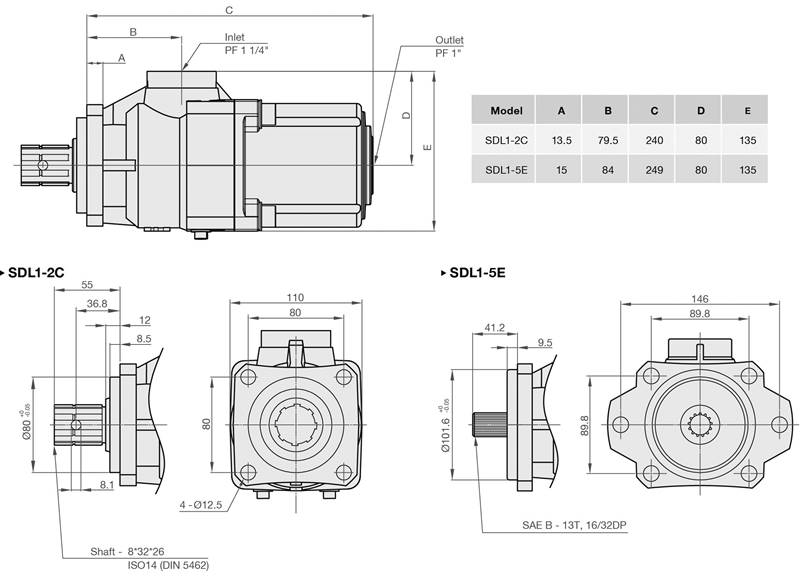

DIMENSION (UNIT : mm)
