      • 21MPa
  • PUMPS

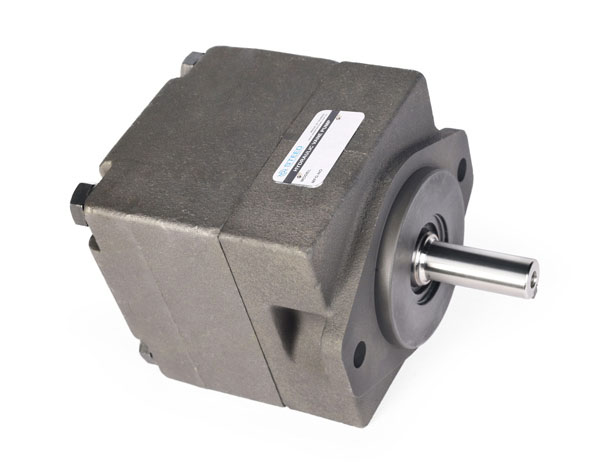

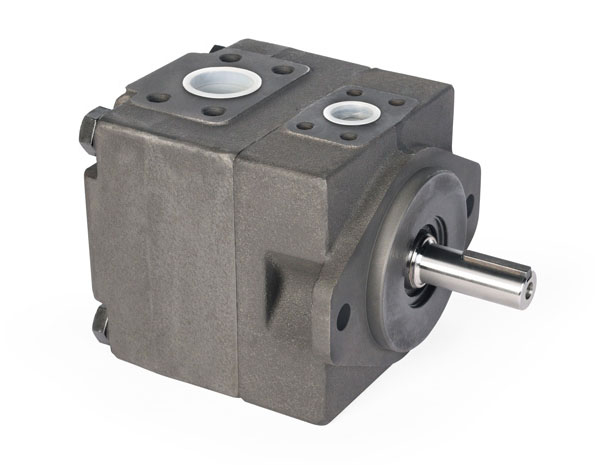

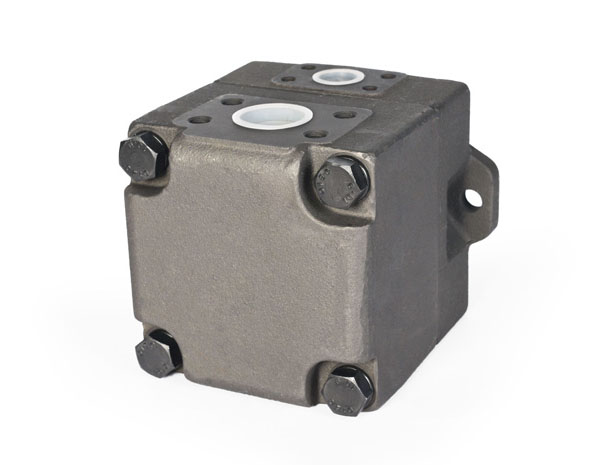

  • 400bar Vane Pump

SHVQ30



MODEL SPEC.

Model

Max. Pressure

( kgf/cm2 )

Using Antiwar Oil or Phosphate Ester Fluid

Using Water Glycol Fluid

Cont.

Peak.

Cont.

Peak.

SHVQ30-19.8

320

360

230

250

SHVQ30-22.5

SHVQ30-24.9

SHVQ30-28.0

SHVQ30-31.8

SHVQ30-34.9

SHVQ30-40.9

SHVQ30-45.1

SHVQ30-50.0

SHVQ30-54.9

290

320

200

230

SHVQ30-61.0

* The peak pressure shall not exceed 10 seconds.



Port

Volumetric

Displacement Vp

( cm3/rev )

Peak Pressure

( kgf/cm2 )

Operating Pressure

( kgf/cm2 )

Max.

Speed

( r.p.m. )

Min.

Speed

( r.p.m. )

Weight
( kg )

P1

19.8

350

320

3600

1800



22.5

24.9

28.0

31.8

34.9

40.9

45.1

50.0

54.9

61.0

320

300



Port

Volumetric

Displacement Vp

( cm3/rev )

Flow Q & N

[l/min]=1800r.p.m.

Input Power P & N

[kw]=1800r.p.m.

p=0bar

p=140bar

p=320bar

p=7bar

p=140bar

p=320bar

P1

19.8

35.6

33.9

31.7

0.84

8.79

19.88

22.5

40.4

38.8

36.5

0.89

9.91

22.47

24.9

44.7

43.1

40.9

0.94

10.9

24.78

28.0

50.3

48.6

46.4

1.01

12.19

27.77

31.8

57.2

55.5

53.4

1.11

13.75

31.42

34.9

62.9

61.2

59.0

1.15

15.04

32.22

40.9

73.7

72.1

70.1

1.28

17.56

37.71

45.1

80.8

79.2

77.0

1.36

19.23

41.37

50.0

89.8

88.3

86.5

1.47

21.28

42.76

54.9

98.82

97.32

95.52

1.65

23.46

50.47

61.0

109.8

108.3

106.5

1.47

25.96

52.16









ORDER CODES

SHVQ30 - 19.8 - 1 R 00 - A 1 - 00 *

      a       -    b   - c  d  e   - f g  -  h   i



a.    Model Name : SHVQ30

b.    Displacement :

      19.8, 22.5, 24.9, 28.0, 31.8, 34.9, 40.9, 45.1, 50.0, 54.9, 61.0

c.    Shaft Type :

      1:keyed SAE B

      2:keyed ISO R775

      3:spline SAE B

      4:spline SAE BB

d.   Rotation Direction :

      R:clockwise direction

      L:counter - clockwise

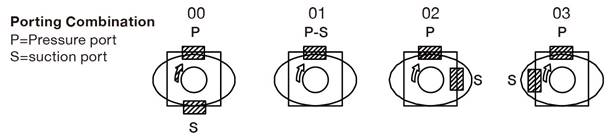

e.    Porting Combination :

      00:standard

f.     Design Number : A

g.   Seal Class :

      1:S1 (for mineral oil)

      4:S4 (for fire resistant fluids)

      5:S5 (for mineral oil and fire resistant fluids)

h.   Mounting w/connection Variables :

4-bolts SAE flange (J518C)



UNC

Metric

Code

00

01

M0

M1

P

1"

3/4"

1"

3/4"

S

1 1/2”

i.     Modifications : *

Port









SYMBOLS

FD Vane Pump_symbol

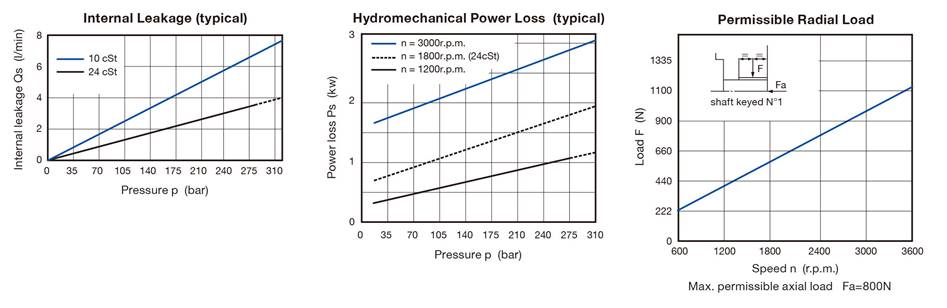

CURVES

ST7B_curve

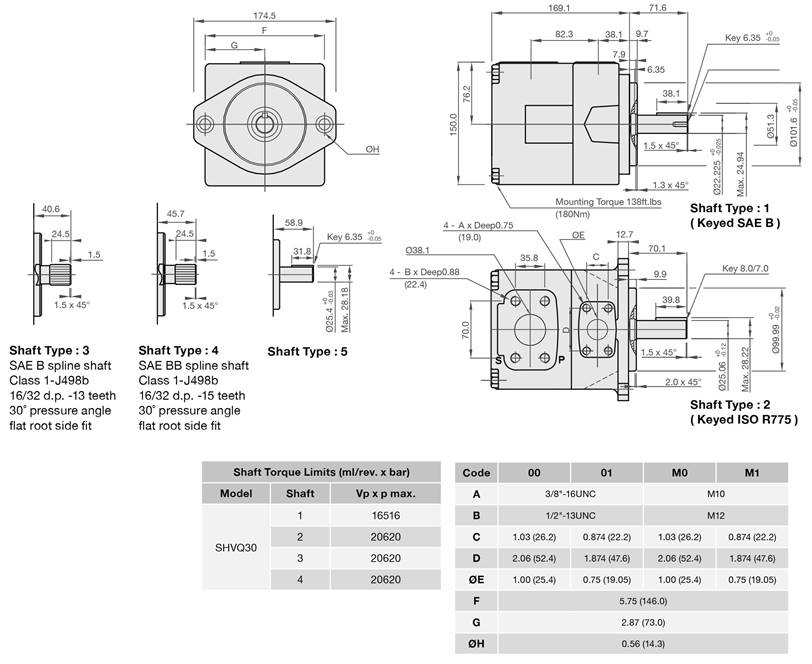

DIMENSION (UNIT : mm)

一張含有 文字, 圖表, 寫生, 工程製圖 的圖片

自動產生的描述
