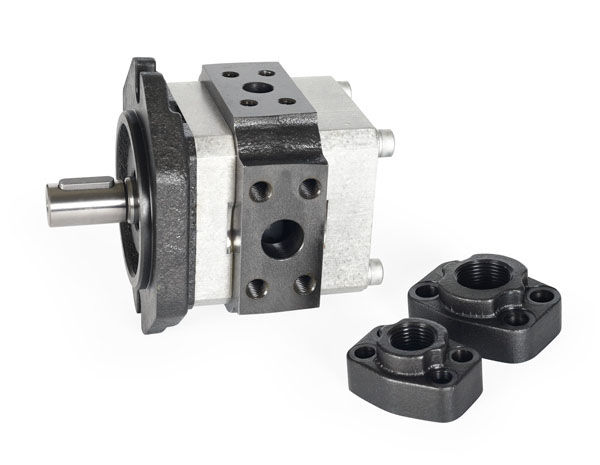

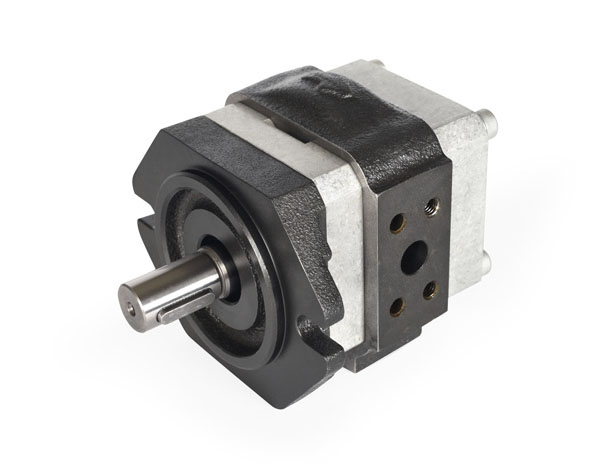

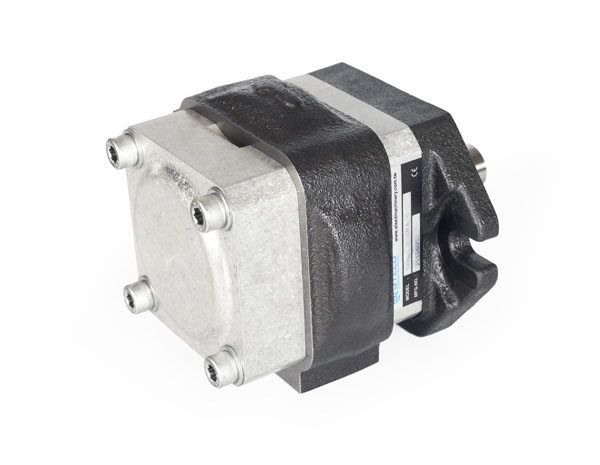

  • Internal Gear Pump

SIPH2



MODEL SPEC.

Model

04

05

06

08

11

13

16

Displacement

(cm³/rev)

4.2

5.4

6.4

7.9

10.9

13.3

15.8

Rated Pressure

(bar)

280

Max. Pressure

(bar)

320

Speed

(r.p.m.)

200 ~ 3000

Viscosity

(mm2/s)

10 ~ 300

Operating Temperature

(°C)

-20 ~ 80

Operating Medium

HLP 32 46 68

Oil Cleanness

Level 9 (NAS1638) or 20/18/15 (ISO4066)

Admission Pressure

(bar)

0.6 ~ 2.0

Efficiency Vol

88

91

92

92

92

93

93

Pump Noise

(dB)

53

53

54

55

56

57

58

Weight

(kg)

3.0

3.0

3.1

3.2

3.4

3.5

3.6



Model

19

20

22

25

Displacement

(cm³/rev)

19.3

20.1

22.2

25.2

Rated Pressure

(bar)

250

Max. Pressure

(bar)

300

300

300

280

Speed

(r.p.m.)

200 ~ 2800

200 ~ 2500

Viscosity

(mm2/s)

10 ~ 300

Operating Temperature

(°C)

-20 ~ 80

Operating Medium

HLP 32 46 68

Oil Cleanness

Level 9 (NAS1638) or 20/18/15 (ISO4066)

Admission Pressure

(bar)

0.6 ~ 2.0

Efficiency Vol

93

93

93

93

Pump Noise

(dB)

58

59

59

60

Weight

(kg)

3.9

4.1

4.1

4.3









ORDER CODES

SIPH2 - 19 - 1 R - H

     a     -  b  - c d  - e



a.    Model Name : SIPH2

b.    Displacement : 04, 05, 06, 08, 11, 13, 16, 19, 20, 22, 25

c.    Shaft Type :

      1:straight keyed shaft

      2:splined shaft SAE16/32-13T

      3:splined shaft SAE16/32-10T

d.   Rotation Direction (Side View of Self Aligning Bearing) :

      R:clockwise

      L:counter-clockwise

e.    Material :

      H:casting iron

      none:aluminum









SYMBOLS

HGP single_symbol









PERFORMANCE CURVES

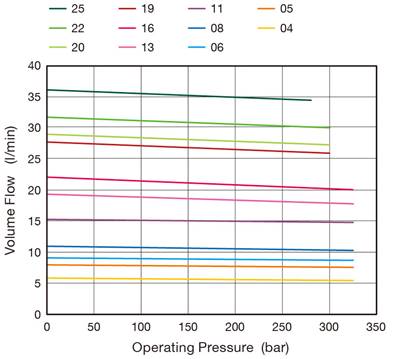

Flow vs. Pressure

一張含有 文字, 行, 圖表, 螢幕擷取畫面 的圖片

AI 產生的內容可能不正確。

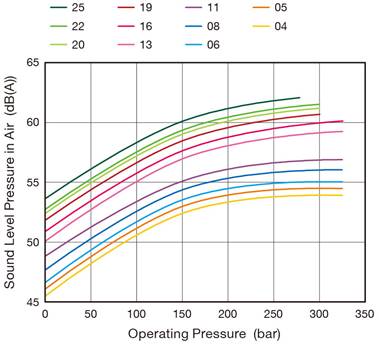

Sound Level Pressure in Air

一張含有 文字, 圖表, 行, 繪圖 的圖片

AI 產生的內容可能不正確。

* Measurement conditions: Speed 1450 min-1, viscosity 46mm²/s, operating temperature 40°C

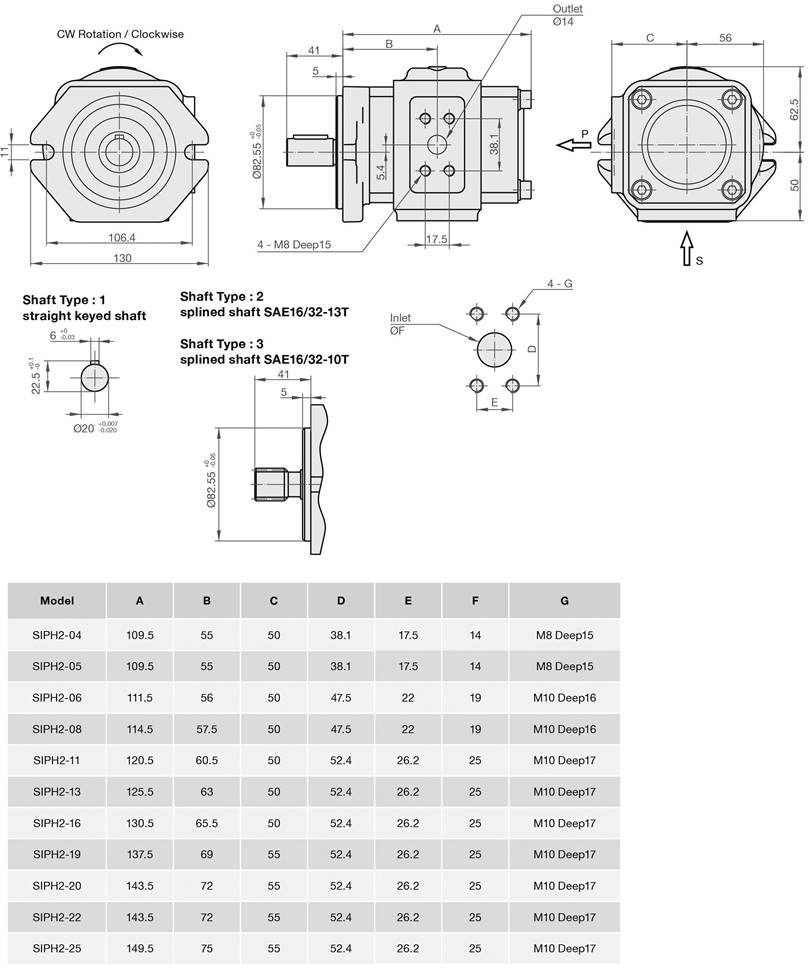

DIMENSION (UNIT : mm)

一張含有 文字, 寫生, 圖表, 樣式 的圖片

AI 產生的內容可能不正確。
