MODEL SPEC.
Model
Displacement
( cm3/rev )
Operating Pressure
( bar )
Max. Pressure
Max. Speed
( r.p.m. )
Weight
( kg )
SDL2-70
73.0
300
350
1500
22
SDL2-80
82.2
SDL2-90
91.4
SDL2-100
100.4
Direction of Rotation
Suction Port Pressure
Viscosity
( mm2/s )
Operating Temperature
Filtration Fineness
Bi-Direction
0.85 ~ 2
10 ~ 100
-15 ~ 100°C ( 5 ~ 212°F )
>200 bar : 10 um <200 bar : 25 um
ORDER CODES
SDL2 - 80 - 1 2C
a - b - c d
a. Model Name : SDL2
b. Displacement : 70, 80, 90, 100
c. Thread : 1:PF (BSPP, G)
d. Mounting & Shaft Type :
2C:DIN 5462 (8*32*36)
SYMBOLS

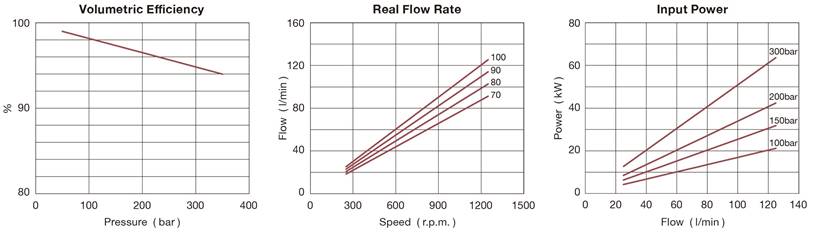

CURVE

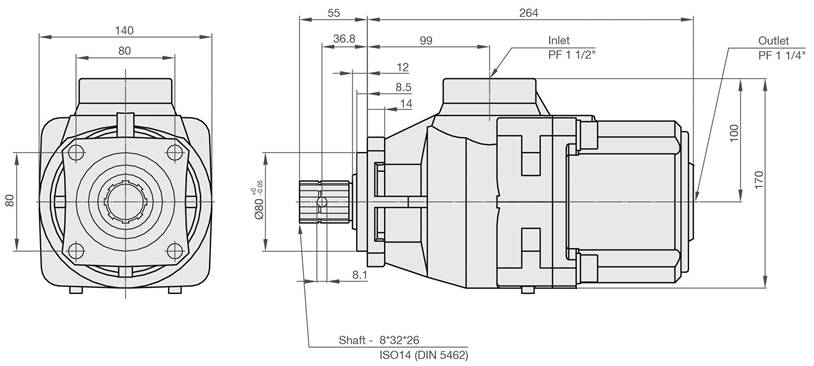

DIMENSION (UNIT : mm)
