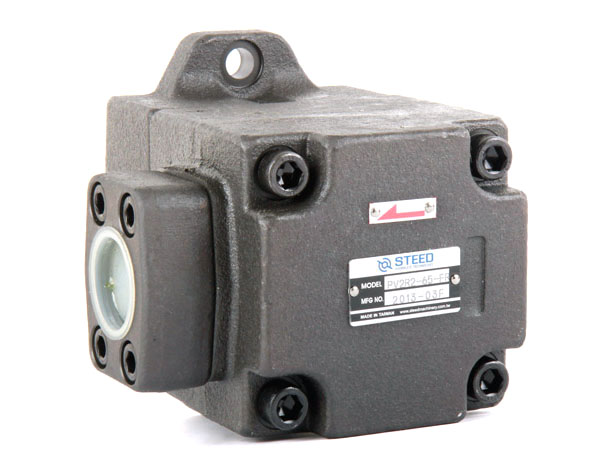

PV2R2

MODEL SPEC.

Model	Delivery Capacity ( cc/rev )				Operating Pressure ( kgf/cm² )		Speed ( r.p.m. )		Ports Size ( PT )		Weight ( kg )
	Speed ( r.p.m. )				Max.	Rated	Min.	Max.	Inlet	Outlet	Foot Type	Flange Type
	1000	1200	1500	1800
PV2R2-22	22	26.4	33	39.6	210	175	950	1800	1 1/4”	3/4”	23.3	19
PV2R2-26	26	31.2	39	46.8
PV2R2-33	33	38.5	48.1	57.7
PV2R2-38	38	45.6	57	68.4
PV2R2-41	41.3	49.2	61.5	73.8
PV2R2-47	47.2	57.8	71.3	86.6
PV2R2-53	53.1	63.5	79.7	95.8
PV2R2-59	59.2	71	88.8	106.9
PV2R2-65	65.2	78	97.8	-	175	160	950	1500	1 1/4”	3/4”	23.3	19
PV2R2-75	75	90	112.5	-

ORDER CODES

PV2R2 - 22 - L - R

a - b - c - d

a. Model Name : PV2R2

b. Delivery at 1000 r.p.m. : 22, 26, 33, 38, 41, 47, 53, 59, 65, 75

c. Mounting :

F:flange type

L:foot type

d. Direction of Revolving (Side View of Self Aligning Bearing) :

R:clockwise direction

L:counter clockwise direction

SYMBOLS

DIMENSION (UNIT : mm)

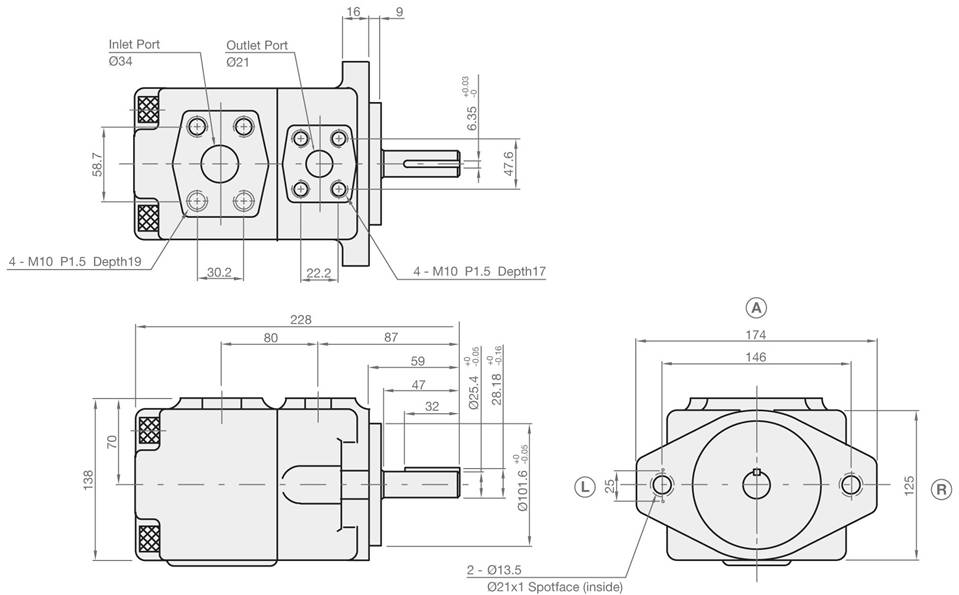

PV2R2 (Flange Type)

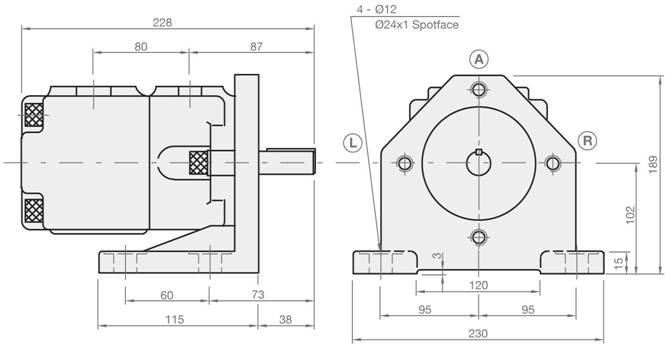

PV2R2 (Foot Type)
