MODEL SPEC.
Model
Used Pressure
( kgf/cm2 )
Max. Pressure
Weight
( kg )
MJCS-02A MJCS-02B MJCS-02P
30 - 210
350
1.64
MJCS-02AL MJCS-02BL MJCS-02PL
15 - 60
210
MJCS-02ALL MJCS-02BLL MJCS-02PLL
5 - 40
60
Operating Voltage / Current
AC250V / 3A AC125V / 5A
DC24V / 20mA

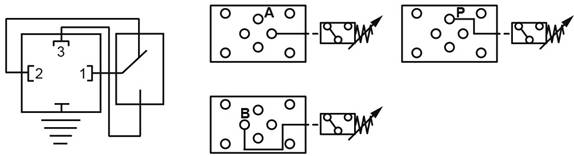

SYMBOLS

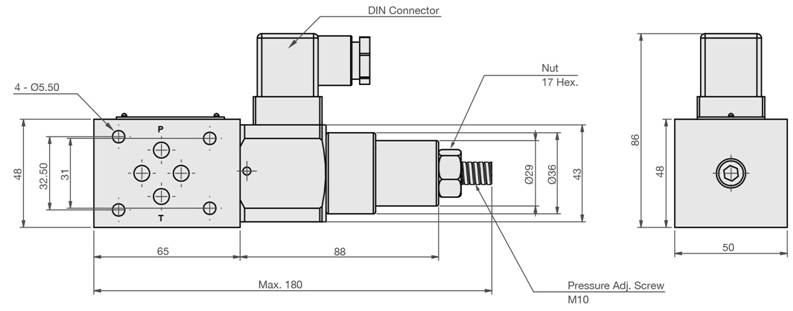

DIMENSION (UNIT : mm)
ACCESSORY
Transparent DIN Connector
AC / DC / Double LED indicators
Operating current : 0.5A or less
