MODEL SPEC.
Model
Used Pressure
( kgf/cm2 )
Max. Pressure
Weight
( kg )
MJCS-03A MJCS-03B MJCS-03P
30 - 210
350
2.58
MJCS-03AL MJCS-03BL MJCS-03PL
15 - 60
210
MJCS-03ALL MJCS-03BLL MJCS-03PLL
5 - 40
60
Operating Voltage / Current
AC250V / 3A AC125V / 5A
DC24V / 20mA

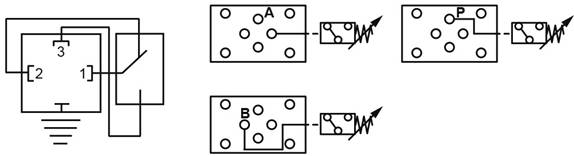

SYMBOLS

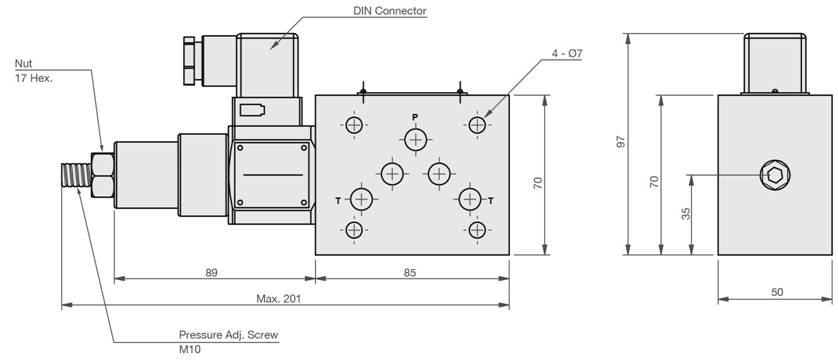

DIMENSION (UNIT : mm)
ACCESSORY
Transparent DIN Connector
AC / DC / Double LED indicators
Operating current : 0.5A or less
