Model
|
Thread Connection
( PT )
|
Flow
( l/min )
|
Weight
( kg )
|
|
AF-06
|
3/4”
|
0.35
|
0.28
|
|
AF-08
|
1”
|
0.45
|
0.32
|
|
AF-12
|
1 1/2”
|
1.7
|
0.66
|
|
AF-16
|
2”
|
2.1
|
0.68
|
|
AF-20
|
2 1/2”
|
3.5
|
1.62
|
|
AF-24 *
|
3”
|
4.6
|
1.66
|
|
AF-32 *
|
4”
|
7.1
|
2.38
|

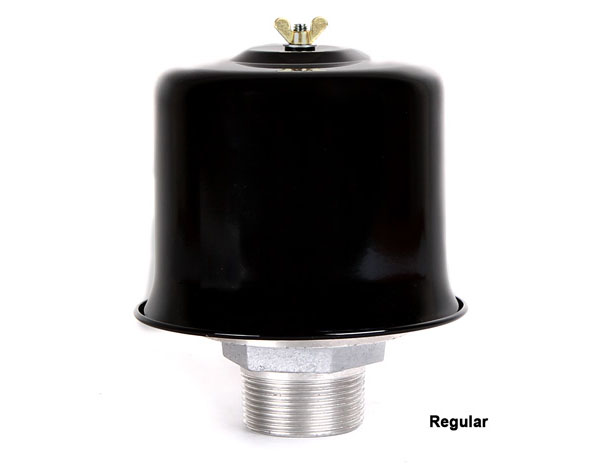

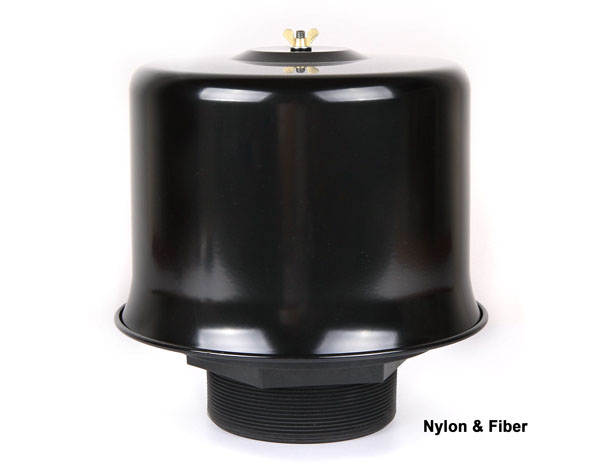

Air breathers AF series could equalize the pressures inside
and outside of oil tank. To keep the hydraulic oil pressure system
functional as usual.

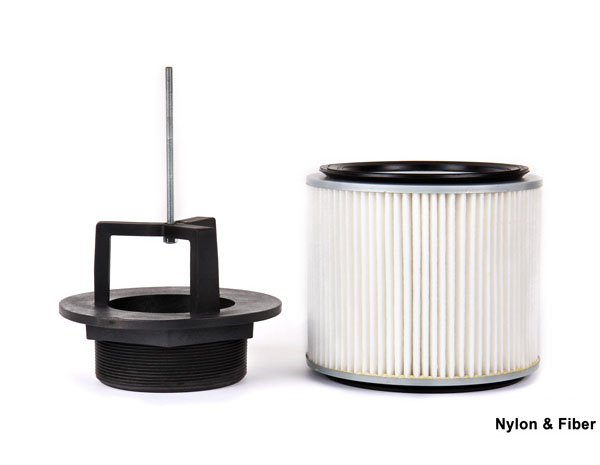

The 40-micron-filtration-precision element can block the dirt
to get into the oil tank. It can maintain the cleanness of operating oil
in the tank.
|
