MODEL SPEC.
|
|
Model
|
Torque kg-m
|
Max. Speed
( r.p.m. )
|
Bore DIA
|
Weight
( kg )
|
Normal
|
Max.
|
Min.
|
Max.
|
NM50
|
1.3
|
2.3
|
13,500
|
7
|
19
|
0.48
|
NM67
|
2.2
|
4
|
10,000
|
9
|
28
|
1.02
|
NM82
|
5.0
|
9
|
8,000
|
10
|
32
|
1.88
|
NM97
|
10.5
|
19
|
7,000
|
12
|
42
|
3.54
|
NM112
|
16.7
|
30
|
6,000
|
14
|
48
|
5.40
|
NM128
|
26.7
|
48
|
5,000
|
18
|
55
|
8.10
|
NM148
|
41.7
|
75
|
4,500
|
22
|
65
|
13.50
|
NM168
|
69.5
|
125
|
4,000
|
28
|
75
|
19.30
|
NM194
|
112.0
|
200
|
3,500
|
32
|
85
|
26.30
|
NM214
|
167.0
|
300
|
3,000
|
45
|
95
|
35.70
|
NM240
|
267.0
|
480
|
2,750
|
60
|
110
|
46.70
|
NM265
|
417.0
|
750
|
2,500
|
70
|
120
|
66.30
|
|

|

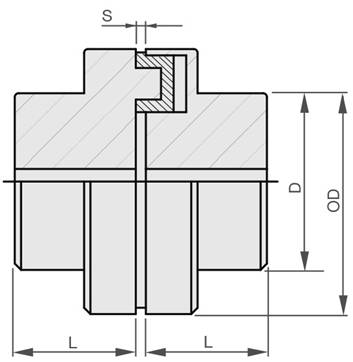

SYMBOLS
|
|

|

|
DIMENSION (UNIT : mm)
|
|

Model
|
D
|
OD
|
L
|
S
|
NM50
|
33
|
50
|
25
|
2.0 ± 0.5
|
NM67
|
46
|
67
|
30
|
2.0 ± 0.5
|
NM82
|
53
|
32
|
40
|
3.0 ± 1.0
|
NM97
|
69
|
97
|
50
|
3.0 ± 1.0
|
NM112
|
79
|
112
|
60
|
3.5 ± 1.0
|
NM128
|
90
|
128
|
70
|
3.5 ± 1.0
|
NM148
|
107
|
148
|
80
|
3.5 ± 1.0
|
NM168
|
126
|
170
|
90
|
3.5 ± 1.0
|
NM194
|
147
|
194
|
100
|
3.5 ± 1.5
|
NM214
|
157
|
214
|
110
|
4.0 ± 2.0
|
NM240
|
179
|
240
|
120
|
4.0 ± 2.0
|
NM265
|
198
|
265
|
140
|
5.5 ± 2.0
|
|
|
|
|
