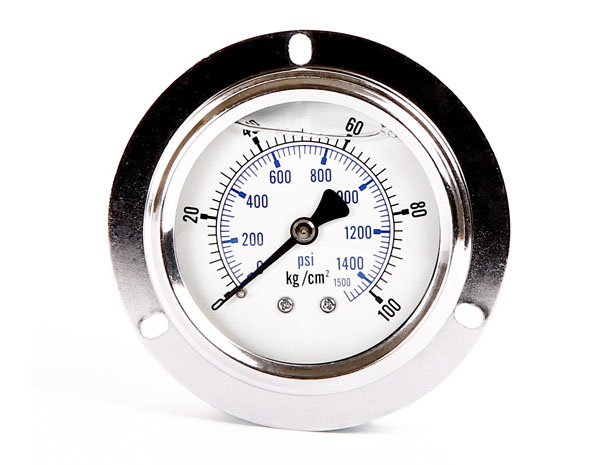

MODEL SPEC.
|
|
|
Model
|
PG-R-2.5
|
PG-R-4
|
|
Pressure
Range
|
-1/0 to -1/+20 kgf/cm2
( bar )
0/1 to 0/1000 kgf/cm2
( bar )
|
|
Accuracy
|
±1.5% full scale
|
|
Gauge
Size
|
2.5" (63mm )
|
4" (100mm )
|
|
Operating
Temperature
|
-25
~ 60°C
|
|
Mounting
Type
|
rear entry
|
|
Connection
Thread and Size
|
PT, NPT, BSPP, SAE
1/4", 3/8", 1/2"
|
|
Housing
Material
|
stainless steel AISI 304
|
|
Filling
|
glycerin
|
|
Weight
(kg)
|
0.34
|
0.8
|
|
|
|
ORDER CODES
|
|
|
PG-R - 2.5 - 210 - 3/8 P
a - b
- c - d e
a. Model
Name :
PG-B:bottom entry
b. Gauge
Size :
2.5:2.5" ( 63mm )
4:4” ( 100mm )
c. Pressure
Range (bar) : 60, 160, 210, 350
d. Thread
Connection : 1/4, 3/8, 1/2
e. Thread
Connection :
P:PT
N:NPT
B:BSPP
S:SAE
|
|
|
SYMBOLS
|
|
|
|
|
|
DIMENSION (UNIT
: mm)
|
|
|

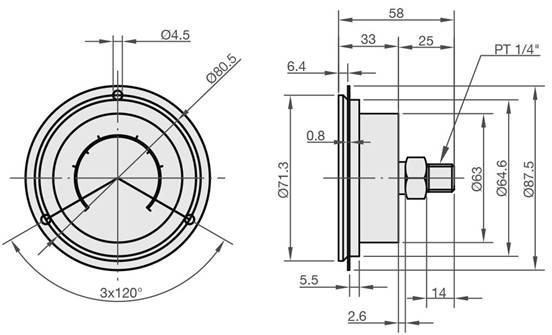

PG-R-2.5

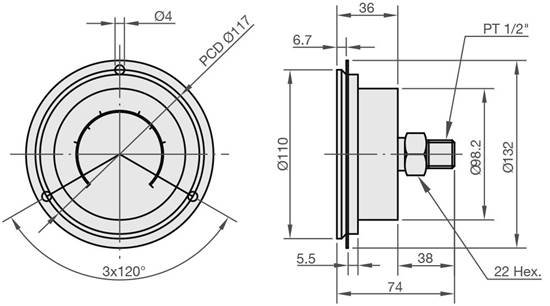

PG-R-4
|
|
|
|
