PG-B

MODEL SPEC.

Model	PG-B-2.5	PG-B-4
Pressure Range	-1/0 to -1/+20 kgf/cm² ( bar ) 0/1 to 0/1000 kgf/cm² ( bar )
Accuracy	±1.5% full scale
Gauge Size	2.5" (63mm )	4" (100mm )
Operating Temperature	-25 ~ 60°C
Mounting Type	bottom entry
Connection Thread and Size	PT, NPT, BSPP, SAE 1/4", 3/8", 1/2"
Housing Material	stainless steel AISI 304
Filling	glycerin
Weight (kg)	0.26	0.8

ORDER CODES

PG-B - 2.5 - 160 - 1/2 N - PC

a - b - c - d e - f

a. Model Name :

PG-B:bottom entry

b. Gauge Size :

2.5:2.5" ( 63mm )

4:4” ( 100mm )

c. Pressure Range (bar) : 60, 160, 210, 350

d. Thread Connection : 1/4, 3/8, 1/2

e. Thread Connection :

P:PT

N:NPT

B:BSPP

S:SAE

d. Accessory Optional :

none:without plastic clips

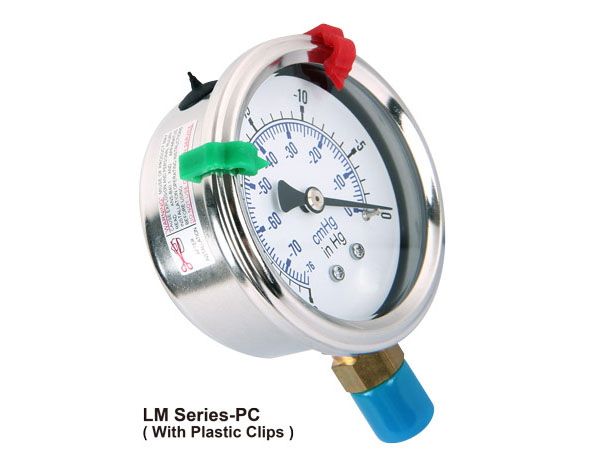

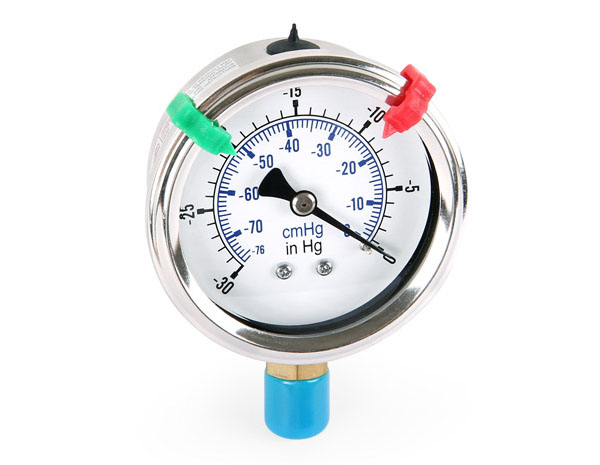

PC:with plastic clips

SYMBOLS

pressure gauge_symbol

DIMENSION (UNIT : mm)

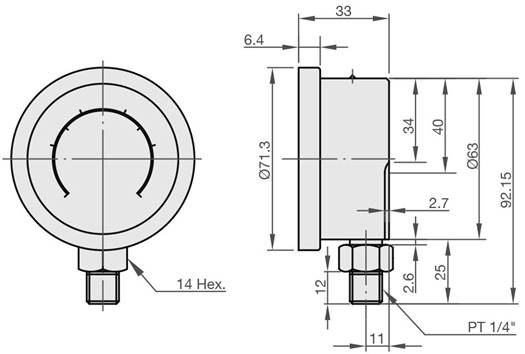

PG-B-2.5

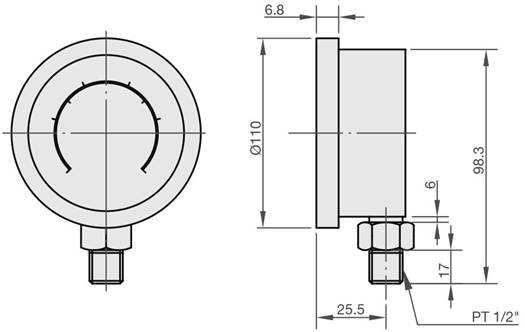

PG-B-4
