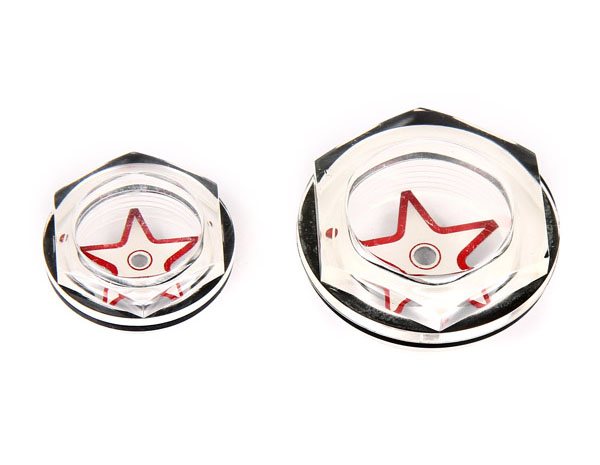

MODEL SPEC.
Model
Weight
( g )
HEX-M30
8
HEX-M40
19
The integrative shaping body is made from polyamide. It is solvent and oil resistant with threads design. The max. temperature tolerance is 105°C. For installation, we recommend that use 1.5~1.85 kgf/cm2 to tighten it.
SYMBOLS

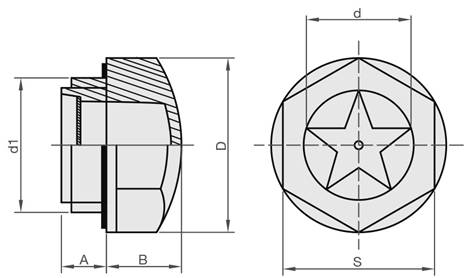

DIMENSION (UNIT : mm)
d1
A
B
D
S
d
M30 P1.5
9
10
35
30
24.5
M40 P1.5
11.5
13
47.5
41
31.5
