TEC

MODEL SPEC.

Model

Min. Thickness of Tank Side Plate

( mm )

Max. Tightening Torque

Weight
( kg )

TEC-08

4

-

2.64

TEC-10

4

2.7 ~ 4.2kg - m/20 ~ 30ft -1b

3.22

TEC-12

4

2.7 ~ 4.2kg - m/20 ~ 30ft -1b

4.46

TEC-14

5

2.7 ~ 4.2kg - m/20 ~ 30ft -1b

5.68

TEC-18

6

2.7 ~ 3.5kg - m/20 ~ 25ft - 1b

9.66

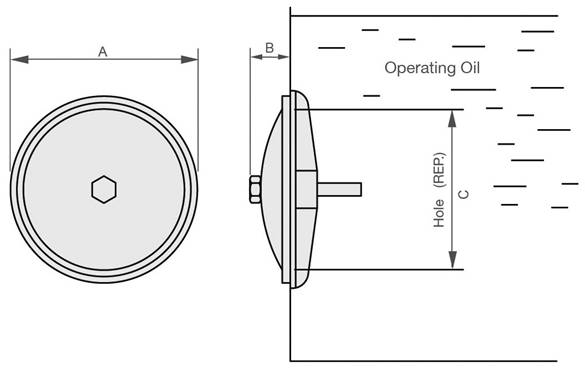

DIMENSION (UNIT : mm)

Model

A

B

C

TEC-08

210

50

150

TEC-10

260

59

200

TEC-12

315

60

265

TEC-14

360

70

310

TEC-18

475

75

425
