MODEL SPEC.
Model
ECG-03-LM
ECG-04-LM
Pressure Range
-1/0 kgf/cm² (bar)
0/700 kgf/cm² (bar)
Accuracy
±1.0% full scale
Operating Temperature
-25 ~ 60°C
Connection Thread and Size
PT, NPT, BSPP 1/4", 3/8", 1/2"
Connect Type
magnetic type
Measure Device and Material
bourdon tube, AISI 316
≦70kgf/cm² (bar) C type tube
＞70kgf/cm² (bar) H type tube
Optional Accessory
flange
Weight (kg)
0.48
0.65
ORDER CODES
ECG - 03 - LM - NO
a - b - c - d
a. Model Name : ECG
b. Gauge Size :
03:75mm
04:100mm
c. Mounting Type :
LM:direct mounting
d. Contact Type :
NO:normally open contact
NC:normally closed contact
SYMBOLS
DIMENSION (UNIT : mm)

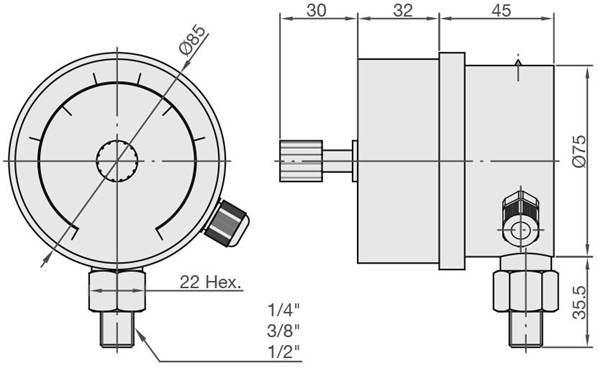

ECG-LM-03

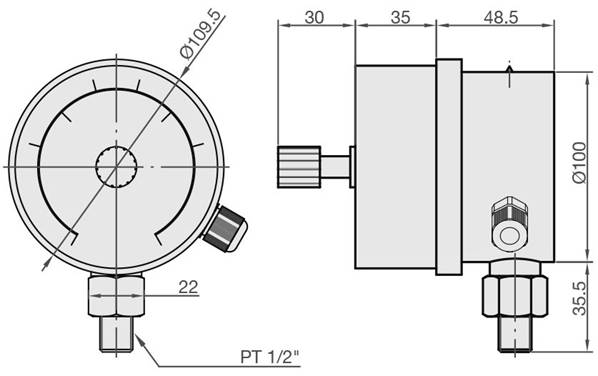

ECG-LM-04
