MODEL SPEC.
Model
PLM
Normal Size
63mm ( 2.5" )
Accuracy
1.5% ~ 1.0%
Range
-1 / 0 to -1 / +20 kgf/cm2 ( bar )
0 / 1 to 0 / 1000 kgf/cm2 ( bar )
Operating Temperature
-25 ~ 60°C
Connection Thread and Size
PT, NPT, BSPP 1/4", 3/8", 1/2"
Housing
stainless steel AISI 304
Filling
glycerin ( 99.5% )
Weight (kg)
0.25
ORDER CODES
PLM - 63 - A
a - b - c
a. Model Name : PLM
b. Gauge Size : 63:75mm,
c. Mounting Type : A:design code
SYMBOLS

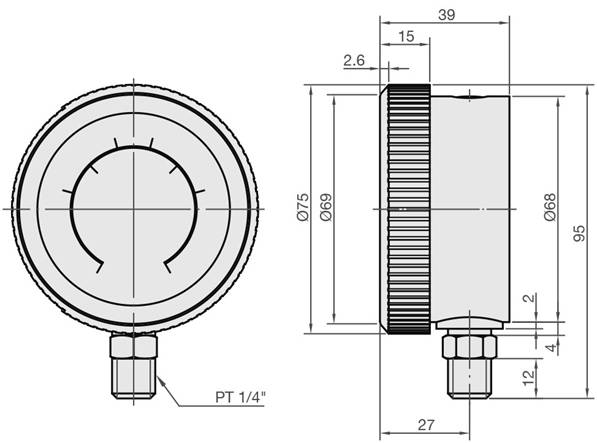

DIMENSION (UNIT : mm)
