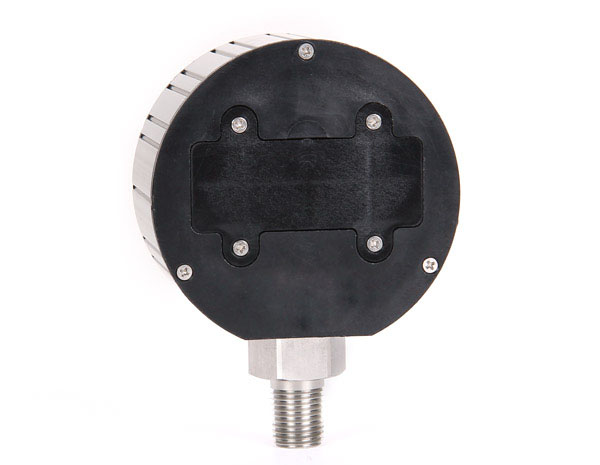

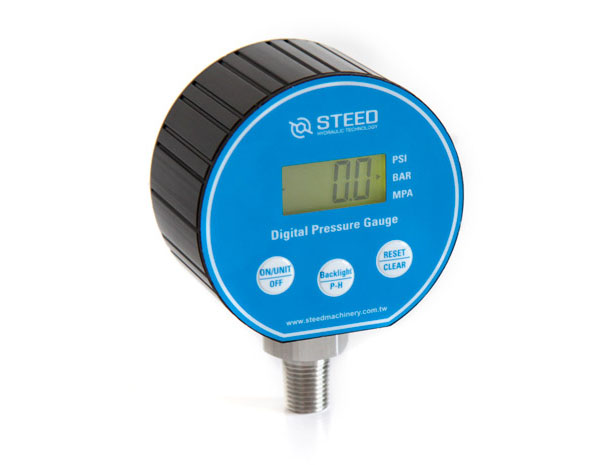

MODEL SPEC.
|
|
|
Model
|
DPG
|
|
Pressure
Ranges (PSI)
|
5, 15, 50, 75,
100, 200, 300, 500,
750, 1000, 1500, 2000,
3000, 5000
|
|
Accuracy
|
±0.25% full scale
|
|
Output
Type
|
4 digits LCD
|
|
Keypad
Operated Functions
|
peak hold,
zero adjustment,
high and low pressure set points,
Note: Ft of head option is available
|
|
Supply
Voltage
|
9V battery
|
|
Automatic
Shutoff Time
|
5 minutes
|
|
Operating
Temperature
|
-10 ~ 60°C
|
|
Water
Resistant Level
|
NEMA 4X (IP65)
|
|
Options
of Pressure Unit
|
PSI, Bar, Mpa
|
|
Media
Isolation
|
316L SS diaphragm
|
|

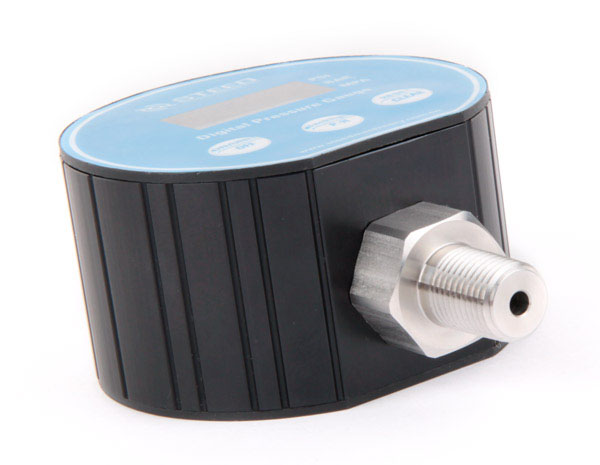

Thread
Connection
|
304L SS port 22mm 1/4 - 18 NPT
or 22mm 1/8 - 27 NPT
|
|
Chemical
Compatibilities
|
any gas or liquid with
chemically compatible to 304L SS and 316L SS
|
|
Typical
Applications
|
process control, refrigeration, fuel cells,
pumps, hydraulics, pneumatics,
compressors, waste water, agriculture
|
|
Weight
(kg)
|
0.35
|
|
|
|
ORDER CODES
|
|
|
DPG - 500 - A - 9V
a - b -
c - d
a. Model
Name : DPG
b. Pressure
Range : 5, 15, 50, 75, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000,
5000PSI
c. Thread
Connection :
A:22mm 1/4 - 18 NPT
B:22mm 1/8 - 27NPT
d. Battery : 9V battery operated
|
|
|
SYMBOLS
|
|
|
|
|
|

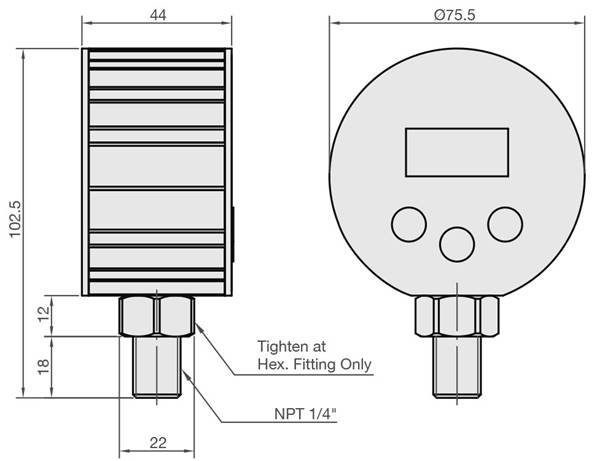

DIMENSION (UNIT : mm)
|
|
|
|
|
|
|
