LVM - M - 250L - 150 - D
a - b - c -
d - e
a.
Model Name : LVM
b.
Signal :
S:single
M:double
c.

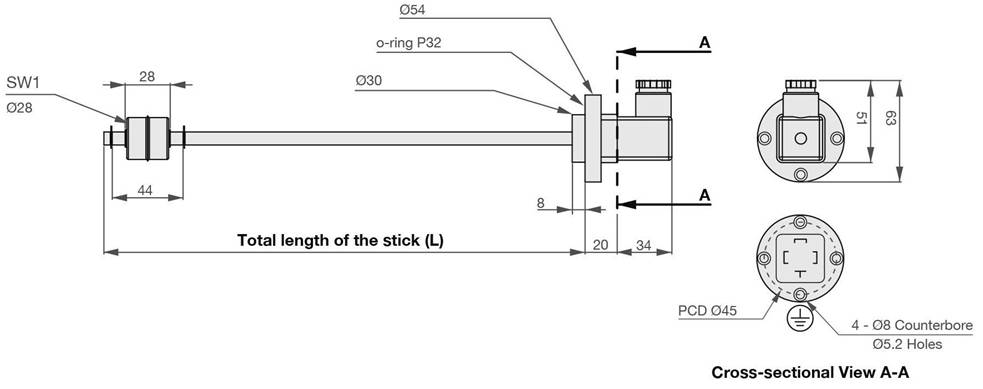

Total Length of The Stick (L) : 200L: 200mm, 250L:
250mm, 300L: 300mm, etc. *
d.

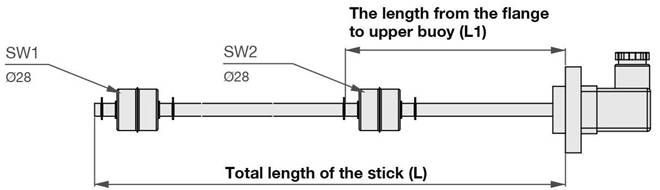

The Length from The Flange to Upper Buoy (L1) : 50, etc. *
e.

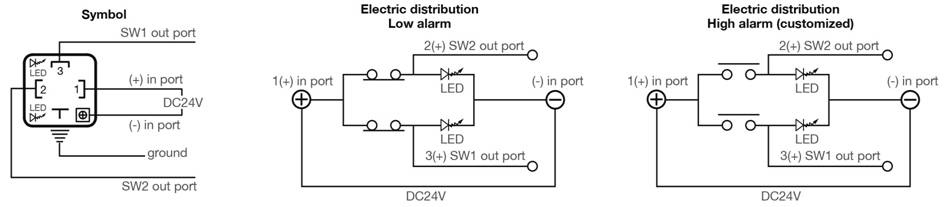

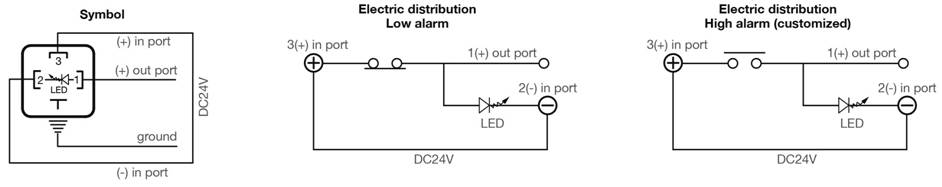

DIN connector :
D:indicator
none:without indicator
* The regualr products total length are 200, 250, 300mm. If
you need taylor made service, please contact us.
|
