LVMTC - M - 300L - 100 - B
a - b -
c - d - e
a.
Model Name :

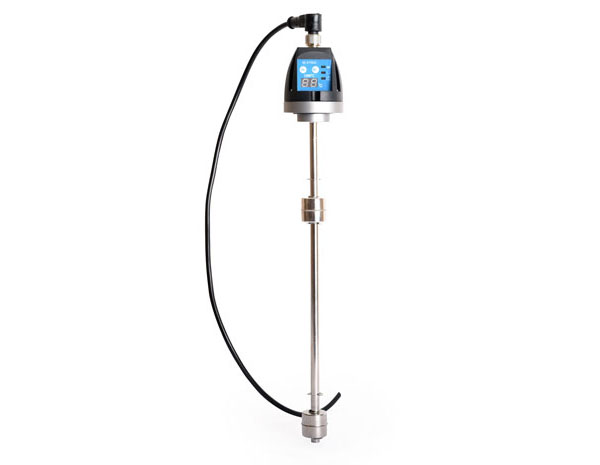

LVMTC: Digital Oil Level Switch with Temperature Control
b.
Signal :
S:single
M:double
c.

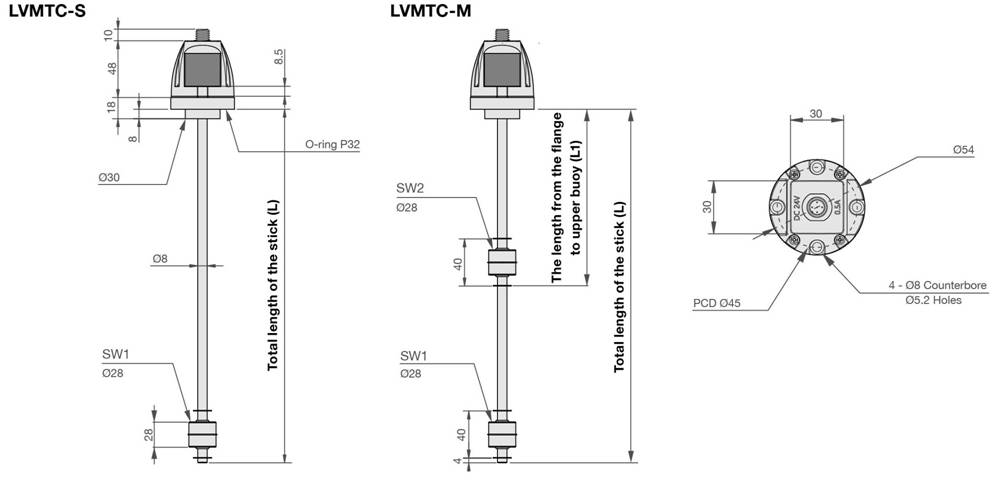

Total Length of The Stick (L) : 200L: 200mm, 250L:
250mm, 300L: 300mm, etc. *
d.
The Length from The Flange to Upper Buoy (L1) : 100, 150, etc.
*
e.
Design Number : B
* The regualr products total length are 200, 250, 300mm. If
you need taylor made service, please contact us.
|
